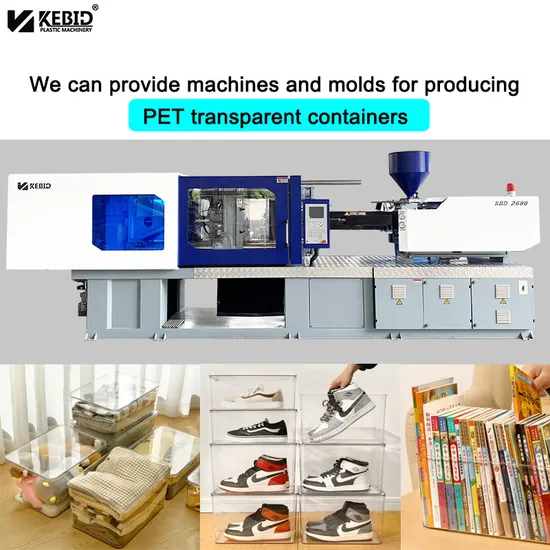

High Hardness and High-Quality Life Product Injection Molding Machine Storage Box

Product Description

Detailed Photos

MOULD



Our Advantages
The computer is imported family.
LCD screen with high clarity and multiple language to display.
Close-loop temperature control with high precision.Deviation preset petween high and low temperature. And break control for temperature sensor.
Alarming system in case of cold start and no material in hopper Self-diagnostic and trouble alarm function
Parameters lock function to avoid being changed
Record quantity of products automatically stop if up to the required quantity.

Product Parameters

SPECIFICATION		KBD2680
ITEM		A	B	C
INJECTION UNIT
SCREW DIAMETER	mm	55	60	65
SHOT VOLUME(THEORETICAL)	cm³	598	712	836
INJECTION WEIGHT(PS)	g	538	641	752
INJECTION PRESSURE	Mpa	200	168	143
SCREW SPEED	rpm	0-190
CLAMPING UNIT
CLAMPING FORCE	KN	2680
TOGGLE STROKE	mm	550
SPACE BETWEEN TIE BARS	mm	580*580
MAX.MOLD HEIGHT	mm	580
MIN.MOLD HEIGHT	mm	230
EJECTOR STROKE	mm	140
EJECTOR TONNAGE	KN	62
OTHERS
PUMP MOTER POWER	Kw	29
HEATING POWER	Kw	20.2
MACHINE DIMENSION(L*W*H)	m	6*1.62*2.25
MACHINE WEIGHT	T	8.5

Company Profile
Ningbo HYSTAN(KEBIDA) Plastic Machinery Manufacturing Co. Itd., located in Chinese eastern seaside city of Ningbo, is a professional high-new technology injection machine manufacturing enterprise. The company, through continuous reform, innovation, carrying on scientific optimization management, sticking to purpose quality first, sincerity first, client first, now has a skilled professional technical team. The Independently developed HYT Series and KBD Series always pass strict test in processing of design, material purchasing, fittings assemblies and output of the machine. And the machine passes the test of International Testing Center. The main parameters, safety characteristics, hydraulic system and electronic system achieve top level in the industry. HYT Series and KBD Series injection machine have characteristics: beautiful figure and appearance, strong clamping force, high precision, low noise, energy saving and low power consumption. The company has dozens of sales network and service department in China. The machine also has been sold to Russia, Southeast Asia, Middle East, South America, Europe, and other Countries and areas, earning good reputation from clients in domestic and foreign market. The company sticks to manage concept People Oriented, Client Supreme, pursues first-class high quality output, and is willing to accompany New and Old Client, Colleague to create splendid future!
QUESTIONS:
Q1:How can I talk to you?
A:Please send the inquiry on the platform.
Q2:Can the price a little lower?
A:If you need,talk with me.
Q3:How is the after-sales service like?
A:We have perfect after-sales service.
If you need anything, please feel free to contact me or have any questions about the injection molding machine. Thank you.

---
