Big Capacity 20tpd Peanut Oil Pressing Machine Peanut Oil Extraction Machine Oil Press Machine

Product Description

Product Description

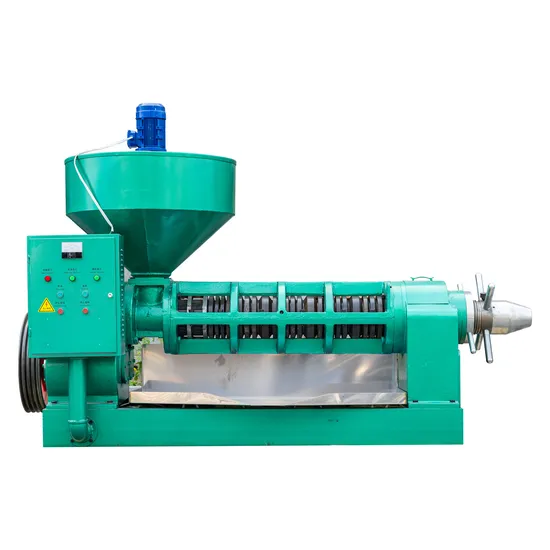

SPIRAL OIL PRESS HT-168 WITH CAPACITY 20TONS PER DAY
20+YEARS FACTORY OF OIL PRESS MACHINE
168 screw oil press processing capacity achieves 20 ton per day.
This oil press has big processing capacity and long press cage so oil material will be squeezed for longer time. Its wearing parts are made of high quality alloy steel to ensure durability. HT-168 is very suitable for medium and small oil producing enterprise because of its high oil yiled and wide adaptibilities.
Suitable oil seeds
HT-168 Spiral oil press made by our company is suitable for squeezing many kinds of vegetable oil, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.
Product Parameters

Model	HT-168
Processing Capacity (t/24h)	20
Motor Power(kw)	37 or 45
Feeding power (kw)	0.55-1.1
Machine weight (kg)	1820
Machine Size(L*W*H) (cm)	275*110*183
Spiral axes rotate speed(r/min)	36-44

Detailed Photos
Main Features:
Compared with other manufacturers, our product shared with the below main advantages:
1. High efficiency!! Residual oil of the cake is less than 7.8%
2. Low cost!! Our machine have more favorable price compared with our competitors
3. Easy operation!! Our machines are easy to be operated, we also provide thoroughly operation manual in English and Chinese for your reference.
4. Long durability!! Squeezing loop and squeezing spiral are conducted heat treatment as carburizing and quenching.The lifetime of our machines reach over 10 years, plus, we produce almost all the parts of the machines in our own plant, so the wearing parts and spare parts are available all year round, which solve your after-service concerns.
Our Factory
Packaging & Shipping
Certifications
FAQ
1. Delivery time.
---10 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.
4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.

---
