P2.604/P2.976 500mm*500mm Aluminum Cabinet Portable Screen Board Electronic Video Panel Stage Background High Refresh LED Advertising Display

Product Description

P2.604/P2.976 500mm*500mm Aluminum Cabinet Portable Screen Board Electronic Video Panel Stage Background High Refresh LED Advertising Display
Product features:
1. Humanized structure design, Thickness of this led display cabinet is only 80mm.
2. Equipped with fast locks, durable and graceful. Easy assembly and dismantling.
3. Speedy heat venting designing ensures steady cooling of the led display cabinets even equipped.
Technical Parameter:

Item Name	Technical Parameter
LED Parameter
Item Name	LED Type
Red LED	SMD3in1
Green LED	SMD3in1
Blue LED	SMD3in1
Module Parameter
Pixel Pitch	2.976mm
Pixel Configuration	1R1G1B
Module Resolution	84 x 84 pixels
Module Pixles	7056 pixels
Module Size	250mm x 250mm
Cabinet Parameter
Cabinet Size(W X H X D)	500mm x 500mm x 80mm
Cabinet Resolution(dot)	168 x 168 pixels
Module Quanity (pcs)	4pcs
Cabinet Pixels	28224 pixels
Pixel Density	112896 pixels/m2
Cabinet Type	Die Casting Aluminum
Cabinet Weight	6.5kg per cabinet
Whole Screen Parameter
Screen Brightness	800cd/m2
Driving Method	1/21 scan, constant current
Min. Viewing Distance	2.9m
Max. Power Consumption	≤ 800W/m2
Ave. Power Consumption	≤ 350W/m2
Gray Levels	14 bit
Frame Frequency	≥60Hz
Refresh Frequency	3840Hz
LED Life-span	≥100,000 hours
MTBF	≥5,000 hours
Discrete Blind Spot Rate	<1/10000
Continuous Blind Spot Rate	None
Blind Spot Rate	<1/10000
Protective Scale	IP20
Screen Plainness	<±1mm
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Working Temperature	Temperature: 0 Celsius~+40 Celsius
Storage Temperature	Temperature:-30 Celsius~+50 Celsius
Humidity	Humidity:10%~90% RH
Control Mode	Synchronous display with control PC by DVI
Control System	Novastar, or Linsn, or Colorlight, or as required.
Display Content	Video, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <20km,internet cable <100m
With Video Processor(optional)	Video,VGA,HDMI,DVI,SDI/HD-SDI/3G-SDI

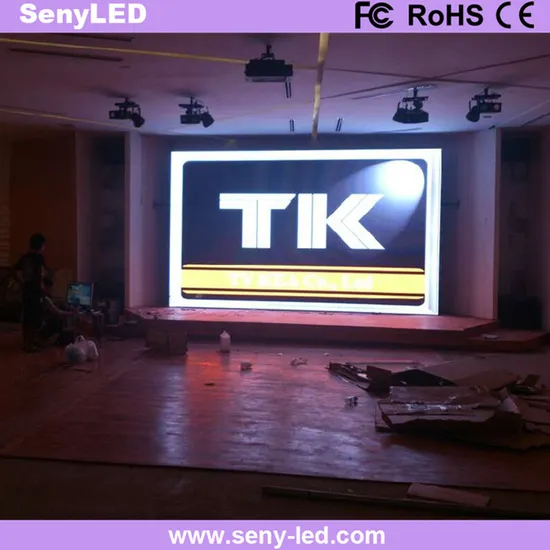

Application Cases:
Connection:
Production Corner:
Certification:
Packaging and Shipping:
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other required services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 1year
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
