CNC Drilling Milling Machine with Beam

Product Description

Product Description

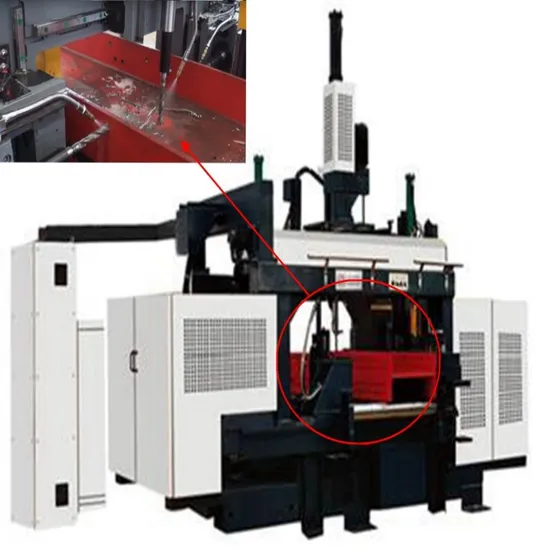

Normal machine for drilling beams' web and flange simultaneously Mainly composed of foundation, upper stand, CNC slideway, drilling head, clamp feeding device, electrical system, hydraulic system, cooling system etc. Malformation examination for webs and flanges.Horizontal and vertical clamping for H-beams. As for left and right spindles, one of them is fixed and the other can do horizontal movement so as to drill the workpiece of different size. The high-quality atomizing cooling system is of high quality that ensures the cooling and lubricating when drilling so that it can prolong the drill's life. Main components in control system are all world famous brands with high quality which ensures the reliability of machine. Programming, storing, display, selection and communication are convenient by using host computer. Clamping workpiece, drills feeding, are mainly driven by hydraulic system. Main components in hydraulic system are all world famous brands with high quality that ensures the reliability of the machine. Detailed Photos
Product Parameters

Model			ABD700	ABD1000	ABD1250
Drill Range	H*W	Max(mm)	700*400	1000*500	1250×600
		Min(mm)	100×50	150×75
	Thickness(mm)		≤50	≤80
Length	Auto mode(m)		3000
	Manual mode(m)		690-3000
Weight	(kg)		5000	8000	10000
Drill dia.	Vertical Drilling (mm)		φ12~φ30	φ12~φ33.5
	Horizontal Drilling (mm)		φ12~φ30	φ12~φ33.5
Drill Axis	Qty. of drill axis(pcs)		3 pcs
	Drill speed (r/min)		180 ~560(Frequency)
	Feeding speed (mm/min)		0-300
	Feeding stroke	Vertical axis(mm)	325
		Horizontal axis (mm)	140
	Horizontal axis move	In workpiece length (mm)	520
		in vertical direction (mm)	30-380	30-470	30-570
	Vertical axis move	In workpiece length (mm)	520
		in vertical direction (mm)	40-620	45-910	45-1160
Cooling	Cooling		Compressed air + cutting fluid
	Air pressure(mpa)		≥0.5
Accuracy	Error of adjacent holes in hole group (mm)		±0.5
	Accuracy of adjacent feeding distance within(mm)		±1
Motor power	Spindle axis motor(KW)		4x3
	Middle axis X servo motor(KW)		0.85
	Middle axis Z servo motor(KW)		1.3
	Side axis X servo motor(KW)		0.85x2
	Side axis Y servo motor(KW)		1.3x2
	Dragging Plate Motor(KW)		0.85
Dimension(L×W×H)(m)			36*15*25	45*24*33	47*24*33
Weight			5500	7000	8000

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery. We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing. We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.
FAQ
1. The delivery time? For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C; For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.2. After-sale service? 1) We can send you free components if machines are in warranty period; 2) 24 hours service on line; 3) We can assign our engineers to serve you if you want.3. Installation and Training? Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.4. Model choose? Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.

---
