Product Details
Product Description
Product Description
Product Description
Features
*Built-in Chargeable Lithium Battery Can Continuously Work 50 Hours
*4 Lines Display Velocity, Flow Rate, Volume And Meter Status

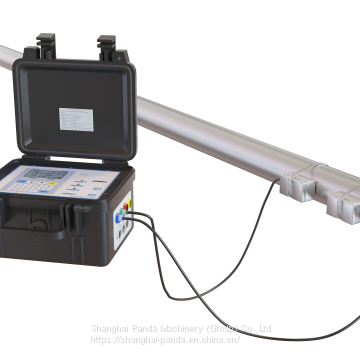

*Clamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption
*Fluid Temperature Range -40℃~260℃
*Built-in Data Storage Is Optional
*Selecting Temperature Sensor PT1000 To Achieve Thermal Energy Measurement Function
*Suitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers
*Bi-directional Measurement, Flow Range From 0.01m/s To 12m/s
Specification
Transmitter
Measuring Principle
| Transit-time
|
Velocity
| 0.01 - 12 m/s,Bi-directional Measurement
|
Resolution
| 0.25mm/s
|
Repeatability
| 0.1%
|
Accuracy
| ±1.0% R
|
Response Time
| 0.5s
|
Sensitivity
| 0.003m/s
|
Damping
| 0-99s(settable by user )
|
Suitable Fluid
| Clean or tiny amounts of solids, air bubbles liquid , Turbidity<10000 ppm
|
Power Supply
| AC: 85-265V DC:12- 36V/500mA
|
Installation
| Portable
|
Protection Class
| IP66
|
Operating Temperature
| -40℃ to +75℃
|
Enclosure Material
| ABS
|
Display
| 4X8 Chinese Or 4X16 English,Backlit
|
Measuring Unit
| meter,ft,m³,liter,ft³ ,gallon,barrel etc.
|
Communication Output
| 4~20mA, OCT, RS485 (Modbus-RUT), Data Logger
|
Energy Unit
| Unit :GJ,Opt: KWh
|
Security
| Keypad Lockout, System Lockout
|
Size
| 270*246*175mm
|
Weight
| 3kg
|
Transducer
Protection Class
| IP67
|
Fluid Temperature
| Std. transducer : -40℃~85℃(Max.120℃)
|
High Temp : -40℃~260℃
|
Pipe Size
| 20mm~6000mm
|
Transducer Size
| S 20mm~50mm
|
M 40mm~1000mm
|
L 1000mm~6000mm
|
Transducer Material
| Std. Aluminum alloy, High Temp.(PEEK)
|
Cable Length
| Std. 5 m (customized)
|
Details
Whole set of products
Application
Company Profile
Our Advantage
Packing and shipping
FAQ
>>
