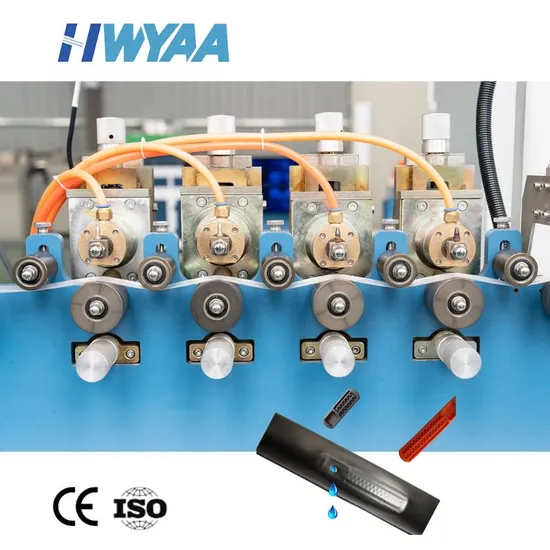

PE Flat Drip Pipe Making Machine Production Line Drip Irrigation Tape Extruder

Product Description

Product Description

Double layers pe high pressure flat drip pipe making line
Product information
This flat dripper irrigation tape production line is our new generation of high-speed thin-wall drip irrigation tape production line. It's used to produce flat type drip irrigation tapes, which are widely used to grow field crops (such as cotton), fruits, vegetables, trees, flowers and more.
Product parameters

Items	Specifications ( low-speed line)
Tape Diameter	Φ16,20mm
Tape Wall Thickness	0.15-0.6mm
Single Screw Extruder	SJ-75/33
Design production Speed	120m/min (300mm spacing distance)
Central Line Height	1000mm
Dripper Identifying Speed	500 pcs/min
Dripper Spacing	100mm-1000mm
Punching Speed	500 pcs/min
Punching Method	Mechanical track puching
Tape Roll Length	500m-2500m
Total Installed Power	75 Kw
Max Extruding Capacity	100Kg
Size of the Line (L×W×H)	28m*4m*3m
Total Line Weight	5800kg

Flat emitters conveyor

Items	Specification
Dripper identify	Photoelectric probe
Spacing Set Range	100mm-1000mm
Feeding device motor	0.55kw
Dripper select motor	0.75kw Frequency Control
Transport motor	0.75Kw servo motor Delta
Dripper transport speed	500 pcs/min

Extruder and pipe extruding nose

Item	Sub-item	Specification High-speed line
Screw	Diameter	75mm
	L/D Ratio	33/1
	Revolving Speed	90r/min
	Material	38CrMoAla
	Brand	FIVE STAR
	Surface Hardness	950Hv
Barrel	Heating Zones for Barrel	4 heating zones
	Material	38CrMoAla
	Brand	FIVE STAR
	Surface Hardness	940Hv
Gear Box	Material	20CrMnTi
	Processing Technique	Forging,carburizing,quenching,gear grinding
	Surface Hardness	HRC58-62
Power	Power of Main Motor	45Kw Siemens Beide
	Heating Power for Barrel	16Kw
	Power for Cooling Fan	4X0.24Kw
Capacity	Extruder Output	140Kg/h
Feeding machine	Vacuum feeding machine	200Kg/h
	Drying hopper	4.8kw
Hydraulic Filter	Form	Single board duplex
	Heating method	Ceramic heating ring
	Heating power	4.5kw
	Motor power	2.2kw
	Pressure control	Pressure Sensor
Die Head	Material for Die Head	40Cr
	Structure of Die Head	right-angle
	Diameter of Die Head	250mm
	Heater for Die Head	1650w
