Hochey Factory Hospital Manual Blood Donor Chair Phlebotomy Chair Dialysis Hemodialysis Chair

Product Description

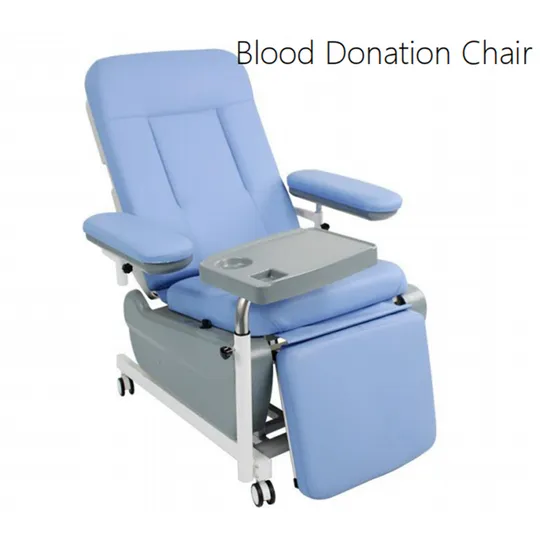

Product DescriptionA blood collection chair is a specialized piece of medical equipment designed for the comfort and convenience of both patients and medical staff during the blood collection process.
Product Introduction
D7-C , blood collection chair is essential medical equipment. It features a comfy seat and backrest made of soft, breathable materials to keep patients relaxed. The adjustable armrests can be set to fit different arm positions for easy blood collection. With a stable base and casters, it's movable and fixable as required. Its height is adjustable to accommodate patients of various statures. Function
1. Ergonomic design, security and comfort
2. Back and leg position adjustable by linear actutor 3. The appearance, which is made of high-strength fiber material and poly-layer paint
4. Frame is made of premium powder coated steel
5. Mattress using medical polyurethane foam molding •Hand-held Manipulator
•ARMREST
The upgraded armrest can be right-left.front-back adjustable. Donor can control position is Rl20° concave curve, avoid donor's arm sliding, ensure the donor safety and comfortable
Technical Configuration

Main body	chair frame parts	Chair frame unit	1 set
	Part of the seat	Cushion, leg plate	1 set
		antifouling seat cover	1 set
	Electrical parts	linear pushing bar motor	2 sets
		controller	1 set
		hand-held manipulator	1 set

Product Parameters

Model Type	D7-C
Product name	Electric blood collection chair
Chair dimension (length X width)	1800mm×580mm
Chair height	550mm
The turning angle of the backboard	0°~ 70°
The turning angle of the Leg plate	0°~ 60°
Leg plate Dimension(length X width)	500mm×420mm
The stretching angle of the armrest	0°~ 45°
The moving distance of the armrest	100mm
The size of the armrest board	460mm×160mm
The lifting distance of the pedal	100mm
standard stroke	100mm/150mm/200mm
Maximum load capacity	8000N
Input voltage	24V
Lifting speed	0.8m/min
Supply voltage/Frequency	AC220V/50Hz
Input Power	500 VA
Motor power	300 VA
Electric current	3A
Safety class/Protection type	Class I/ Type B
Load/N.W	120kg/100kg
Box size (L × W × H)	1300mm×900mm×1400mm

Real Photos
Company ProfileHOCHEY MEDICAL
HOCHEY MEDICAL CO.,LTD. specializes in Medical Gas Solutions and Furnitures.
We have a specialized human team of more than 300 employees and 120,000 m² facilities equipped with the latest technology, as well as 5,000 m² of showrooms where we can see and test all our products.
Factory is established in 1996, and there are workshops with 120,000 square meters. And now our hospital bed achieved full automatic production lines, so monthly production is more than 50,000 units.
We focus on constant innovation. We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate more than 2,000 registered technological patents and our products were approved by quality certifications: ISO9001, ISO13485, ISO14001, ISO18001, FSC, European CE, FDA of the USA, Russian Federal Register, Uzbekistan Register, Indonesia Register etc.. Products are tested by the 93/42/EEC and IEC 60601 safety standards.
Now our products are sold to more than 206 countries and places.
In all of this our R&D department is the key. Our production and comprehensive service model allow us to meet the objectives of our work philosophy: offer an optimal experience for our customers and contribute to the improvement and modernization of the global healthcare system. we continue to work effectively and enthusiastically, from each department and each of our staff.
Certifications
After Sales ServiceWe supply 24hours aftersales service
1.Technical support and guide2.Free spare parts3.Warranty:2 years
FAQQ: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485.
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOBShanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit; If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order.
Q: What is your Min.order?
A: There's no minimum quantity.

---
