NPN Nc Modbus 485 Serial Communication Light Curtain Sensor with CE Certification

Product Description

Product Description

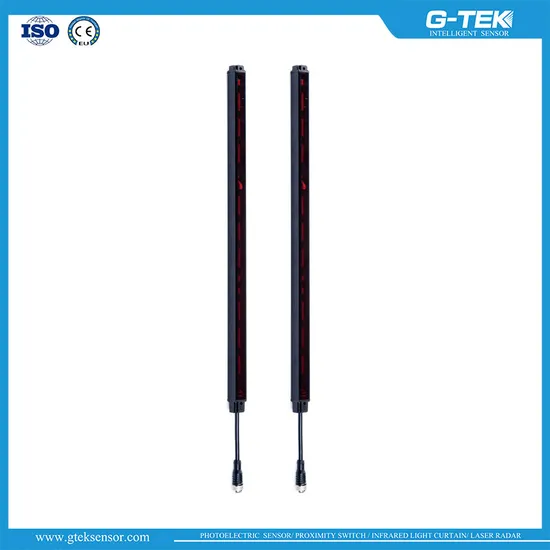

LSE Series light curtain is a New economical light curtain with a slim shape, suitable for limited space then it is a popular choice for industry high-speed door and speed gate turnstiles to replace the photocells to improve protection effect.
LSE-DB Door light curtain.
1. New light curtain for automatic gate and barrier gate, Blanking function
2. The space between the optic axis: 40mm,80mm, and 160mm and the customer can choose different models as required.
3.1-way switching output, detection(sheltering)output, NPN/PNP for option, Output mode (Normal open/Normal close)for option, LSEC series with modbus485 serial interface
4. Slim shape can be installed in the door frame, and a Bracket for selecting
5. Protection rate: IP67, CE certificate
LSE(C) infrared light curtain
LSEC series is wired synchronization, RS485serial communication(Modbus)LSE series is Optical synchronous communication
1. Space between light beams: 40mm,80mm,160mm( Mark as 40,80,160);
2. Quantity of light beams
l 40mm :12 ~ 48(mark as 12~ 48),Increment: 4
l 80mm :06 ~ 24(mark as 06 ~ 24),Increment: 2
l 160mm:04 ~ 12(mark as 04 ~ 12),increment: 1
3.Receiver output (shelter output ) NPN(N)/PNP(P)for selecting,Normal open(O)/ Normal Close(C)for selecting
Detailed Photos

Product Parameters

LSE(C) series economical light curtain
Model	LSE(C)40	LSE(C) 80	LSE(C) 160
General parameters :
Space between beams	40mm	80mm	160mm
Number of optical beams	08~48	04~24	02~12
Space between beams	50 mm	90 mm	170 mm
Detection distance	1~3m	1~8m	1~8m
Detection height	40 mm:280mm...1,880 mm 80 mm:240mm...1,840 mm 160 mm:160mm...1,760 mm
Mechanical and electronic parameters:
Supply voltage	24v DC ± 20%
Work current	Max.150 mA
Response time	1~7.6ms( As per models )
Work mode	Normal open, Normal close
Control output	Transistor PNP/NPN(as per customer demand),1 output(Detection output),(LSEC4042D2 ways detection output)
Indicator	Emitter: Power indicator (yellow), Fault (Red) Receiver: Power indicator (yellow), Shelter (Red)
Communication	LSE: Optical synchronization LSEC: cable synchronization LSEC series with modbus485 interface
Protection Rating	IP67
Work temperature	-30ºC~60ºC RH≤ 95%
Dimension	As per models

Product Series	Product Model	Detection Distance	Min sensing object	Quantity of optical axis	Scanning Height (mm)	Housing Height(mm)	Response Time (ms)
LSE40 series	LSE40008	0.5-2m	50mm	8	280	369	1.6
	LSE40012			12	440	529	2.2
	LSE40016			16	600	689	2.8
	LSE40020			20	760	849	3.4
	LSE40024			24	920	1009	4.0
	LSE40028			28	1080	1169	4.6
	LSE40032			32	1240	1329	5.2
	LSE40036			36	1400	1489	5.7
	LSE40040			40	1560	1649	6.3
	LSE40044			44	1680	1809	6.9
	LSE40048			48	1880	1969	7.5

Product Series	Product Model	Detection Distance	Min sensing object	Quantity of optical axis	Scanning Height (mm)	Housing Height(mm)	Response Time (ms)
LSE80 series	LSE80006	1-6m	90mm	6	400	529	1.4
	LSE80008			8	560	689	1.6
	LSE80010			10	720	849	2.0
	LSE80012			12	880	1009	2.2
	LSE80014			14	1040	1169	2.5
	LSE80016			16	1200	1329	2.8
	LSE80018			18	1360	1489	3.1
	LSE80020			20	1520	1649	3.4
	LSE80022			22	1680	1809	3.6
	LSE80024			24	1840	1969	4.0

Product Series	Product Model	Detection Distance	Min sensing object	Quantity of optical axis	Scanning Height (mm)	Housing Height(mm)	Response Time (ms)
LSE160 series	LSE16004	1-6m	170mm	4	480	569	1.0
	LSE16005			5	640	729	1.2
	LSE16006			6	800	889	1.4
	LSE16007			7	960	1049	1.5
	LSE16008			8	1120	1209	1.7
	LSE16009			9	1280	1369	1.8
	LSE16010			10	1440	1529	2.0
	LSE16011			11	1600	1689	2.1
	LSE16012			12	1760	1849	2.3

Product Application
Installation Instructions
Certifications

Packaging & Shipping
Company Profile
Tianjin G-TEK sensor technology co..ltd provides intelligent sensor products and customized solutions for logistics, factory, and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider, which was established in 2003 with business ranges from Proximity switches, photoelectric sensors, measurement, and safety light curtains to Laser rangefinder sensors, laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation, and industry robot fields.Tianjin G-TEK sensor technology co.,ltd was established in 2014 in Xiqing District, Tianjin City. It will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacturing base.
Q: Is the product ship and arrived fast?
A: The production cycle for large quantities of products takes 15-30 days, depending on the product.
Q: Can you provide professional advice promptly?
A: We have a professional technical team that can patiently help you answer all professional questions.
Q: Can you provide customized products/services?
A: Yes, we can provide customized products, but the customization needs to meet a certain quantity.
Q: How is the quality of the product? Is the quality stable?
A: G-TEK Sensors has been focusing on the sensor field for 23 years. The quality of the sensor has the double affirmation of the CE certificate and customer reputation.
Q: What is your MOQ?
A: We offer MOQ per piece; it depends on your specific order.
Q: Is there any relevant terms of service and warranty information?
A: We offer a warranty on all items. The sensor products are guaranteed for 15 months, and the light curtain and lidar products are guaranteed for 18 months. For after-sales questions, you can directly contact the product salesperson.
Q: Is there any relevant information available for download on the website?
A: Yes, if you want to download the relevant product manual, you can go to our official website.
Q: Can I be your reseller?
A: Yes, we are looking for distributors in overseas markets.

---
