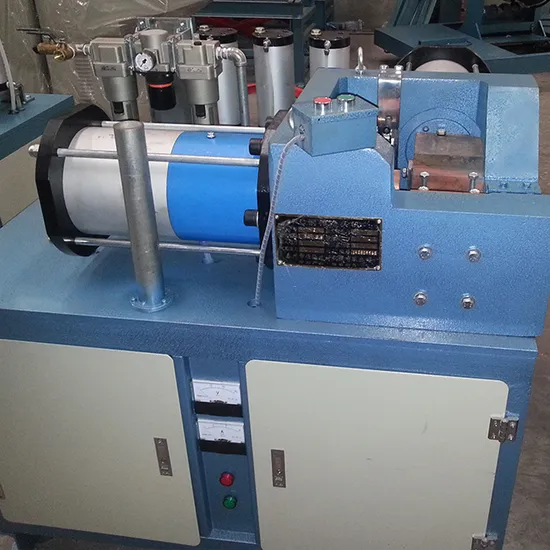

Auto Concrete Spun Pile Pole Steel Button Heading Machine

US$7,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
heading machine
Power Source
Electric
Feature
High Efficiency
Certification
ISO9001, CE
Warranty
12 Months
Customized
Customized
Advantage
Work Flexible
Condition
New
Color
Customized
Voltage
380V
Size
1250 * 1180 * 1180mm
Rated Capacity
15kVA
Air Max
7.2 Kg/Cm
Product Name
Automatic Steel Bar Button Heading Machine
Transport Package
Plywood Case
Specification
7-12.6mm
Trademark
Amitycare
Origin
China
HS Code
8462919000
Production Capacity
100 Pieces/ Year

Product Description


Automatic steel bar button heading machine matched with cutter and heading machine together, achieve
to auto cutting,heading and moving bar away way .NC controller,mote adopts VFD,accurate speed,stablywork
handle and Automatic way change any time,it can work in any where,easy installation,energy-efficient,after
sale service with commercial cost.

Rated capacity
15KVA
Max.clamping force 50T when the air pressure is 7.2kg/cm²
Max.upsetting force 50T when the air pressure is 7.2kg/cm²
Diameter of bar Φ7.1mm, Φ9.0mm, Φ10.7mm, Φ12.6mm
Same-specification operation direction left and right direction
The strength loss of heading reinforcement <5%
Biggest heating current 7500 a
size
1250 * 1180 * 1180

input voltage

AC380V plus or minus 5%, 50HZ, three phase four wire system

Air MAX

7.2 kg/cm squared
