High Quality Kraft Liner Paper Product Make Processing Machine

Product Description

20Tons Per Day.High Quality Kraft Liner Paper Product Make Processing Machine
From Waste Carton
Product Description
Waste carton pulp machine(stock preparation system) is to make waste paper boxes, waste paper edges and other raw materials through procedures such as disintegration, grinding, screening, etc., to make fiber water suspensions that meet the requirements of papermaking, and then send them to the paper machine through the flow delivery system to make paper that meets the user's requirements. process.
Kraft paper making machine could make jumbo paper rolls from waste carton paper pulp.
Kraft paper making machine is a type of paper machine used for producing kraft paper, which is a strong and durable paper that is commonly used in packaging and other industrial applications. The machine typically consists of several key components, including a pulper, a screening system, a refiner, a paper-making unit, and a drying unit.
The pulper is used to break down waste paper or wood pulp into a fine pulp, which is then processed further. The screening system removes any contaminants or large particles from the pulp, ensuring that the final product is of high quality. The refiner is used to further break down the pulp fibers and distribute them evenly, preparing them for the paper-making process.
The paper-making unit is where the actual paper is formed. This is typically done by depositing a layer of pulp onto a moving belt or wire, where it is then compressed and dried to form a sheet of paper. The drying unit is used to remove any excess moisture from the paper, ensuring that it is dry and ready for further processing or use.
Kraft paper making machines are often equipped with advanced technology and automation systems to ensure efficient and precise control over the paper-making process, as well as to improve the quality of the final product. These machines can be customized to meet the specific needs and requirements of different paper-making operations.

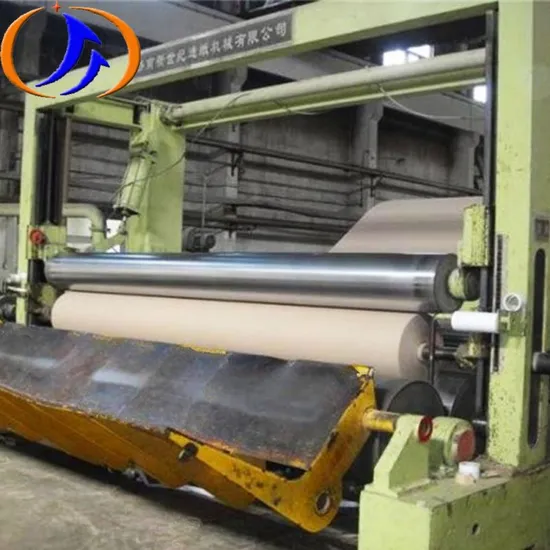

Detailed Photos

Product Parameters
Product parameters

Kraft Paper, Corrugated, Cardboard Paper Making Machine
Model		Kraft, Corrugated, Lining Paper Machine
Cylinder mould diameter		1250mm*4sets
Dryer cylinder diameter		1500mm*14sets
Dryer cyclinder arrangement		8+6
Pressing type		one prepressing,two main pressing
Prepressing diameter		400/450mm
Main pressing diameter		550/600mm
Paper grams		80-180g/sm
Power		210kw
Weight		200t
Dimension(L*W*H)		48000*2980*5450mm
Speed		40-90m/min
Production capacity		20 T/d

Company Profile
Product display
Factory Photo
Company Introduction
Qingdao International Trade CO., LTD, which is located in Free Trade Area, Huangdao, Shandong, specializes in developing and producing various machinery. We have professional team and mature production experience for more than 20 years. Taking high technology as guide, the improvement of management level and employee quality as center, the expansion of the production scale and the upgrade of the products as aim, our company will strictly focus on the product quality and put every series of products on the international market with outstanding performance and preeminent quality. Our company persist in the slogan "Customer's satisfaction is our standing pursuit".
Customer Photos
Packaging & Shipping
Packing&Shipping
FAQ
FAQ: 1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.

---
