Product Description
Product Description
Product Description

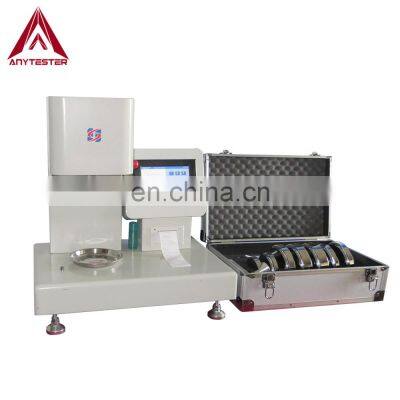

AT430D Melt Flow Index Tester is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PE, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.
Standard
ASTM D1238
| ISO 1133-1
|
GB/T 3682-2000
| JB/T 5456
|
Note: For more standards, please contact us!
|
|
Specification
Model
| AT430D
|
Temperature range
| 120℃~450℃
|
Temperature error
| ≤±0.2℃
|
Temperature resolution
| 0.1℃
|
Temperature recovery time
| ≤4 min
|
Display mode
| Touch screen operation
|
Test method
| MFR
|
Timing accuracy
| 0.1s
|
Cutting mode
| Manual & automatic
|
Standard die
| Tungsten carbide, Φ2.095±0.005mm
|
Height of standard die
| 8.000±0.020mm
|
Inner diameter of feed cylinder
| Φ9.550±0.025mm
|
Diameter of piston
| Φ9.475±0.015mm
|
Length of piston head
| 6.350±0.100mm
|
Power
| AC220V, 50Hz, 450w
|
Details & Features
★ Chinese/English operate interface; ★ Simple structure, easy to operate, easy to maintain;
★ Color touch screen control;
★ Professional software to control temperature automatically, automatically cutting material, real time display test curve, mini-printer to printout test data;
★ Can automatically calculate the melt flow rate (MFR) after inputting the mass value;
★ Can store recent 40 groups of test data.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
