Woodworking Machinery High Precision for Calibrating Sander

Product Description

We supply high quality Woodworking Belt Sander Sanding Machine BSG630R-RP Product Application
(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
(2) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.

2. Standard installation:
(1). Sanding belt automatic centering.
(2). Pneumatic sanding pad (RP model)
(3). Schneider Electrical component
(4). Brush roller cleaning the panel after sanding
(5). Pressure shoes guarantee feeding work pieces stably
(6). Japanese NSK internal bearing reduce vibration of belt
(7). Photoelectric control equipment which control vibrating of abrasive belt along center.
(8). Automatic air blower on sanding belt to prolong the life time of sanding belt

Model	BSG130R-R-RP
width of sanded panel	40-1300mm
thickness sanded panel	3-120mm
speed of abrasive belt on 1st unit	18m/s
speed of abrasive belt on 2st unit	18m/s
speed of abrasive belt on 3st unit	14m/s
speed of conveyor belt	6-30m/s
size of abrasive belt	1300x2500mm
Diameter of 1st roller	Φ240mm
Diameter of 2nd roller	Φ240mm
Diameter of 3rd roller	Φ210mm
power of abrasive belt on 1st unit	37Kw
power of abrasive belt on 2nd unit	30Kw
power of abrasive belt on 3rd unit	22Kw
conveyor belt power	5.5Kw
lifting motor power	0.37Kw
brush motor power	0.37kw
working pressure	0.55Mpa
consumption of compressed air	0.3m3/min
volume of sucked air	>13000m3/h
average speed of sucked air	25-30m/s
overall dimensions	2400x2700x2200mm
N.W	5000kg

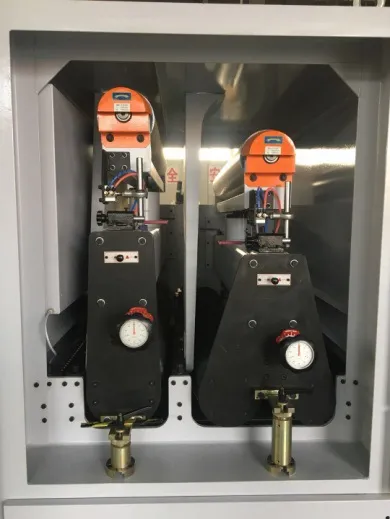

Details Image
Packing&Delivery
Packaging:The normal package is PLASTIC FILM also we can packing with your requirements
Delivery:About 30 days after receive the down payment delivery
Our company&factory
FAQ
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port

---
