High Performance Ele 1530 Linear Atc CNC Router, 4 Axis CNC Router with Rotary for Sale in Saudi Arabia

Product Description

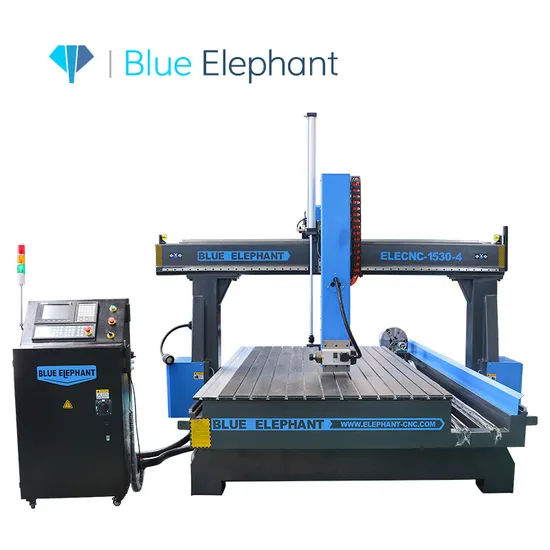

ELE 1530 Linear atc cnc router , 4 axis cnc router with rotary


Advantages
Jinan fast speed cnc router, equipped with round or carrousel type auto tool changer. This kind of Multi-use cnc cutting center (furniture cnc router for side punching) is not only very suitable for wooden furniture cabinet, but also processing foam mould. It can also finish side punching work for door hole, because that rotary spindle can rotate 180 degree. 2 pieces roller in the front of table is customized for customer, which make mdf or wood plate get through table conveniently. Lots of our customer like adding dust cover on y axis or other axis, which save your much maintenance time. Just tell us what you need, we customize for you Technical parameters

Description	Parameter
Model	ELE1530ATC-4
Tool magazine	Round or Carrousel type auto tool changer with 12 tools storage
X,Y,Z Working Area	1500x3000x400mm
Table Size	1500×3000mm
Table Surface	Vacuum and T-slot working table, 6 zones; 2 pieces roller in the front of table
Structure	Industrial class square tube strong structure, heavy duty 8-10mm
X, Y Structure	Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail; Dust cover for Y axis
Z Structure	Sweden ABBA #30 Linear Square Rail and TBI Ball Screw
Spindle	Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to +90° ISO30 tool holder
Spindle Speed	0-24000RPM
Drive Motors	850wJapan YASKAWA servo motors and 1kw drivers
Inverter	11kw Taiwan DELTA inverter
Working Voltage	220v, 3phase, 60HZ (or customized)
Command Language	G Code
Operating System	Taiwan SYNTEC 21MA 4 axis control System with handle
Computer Interface	USB
Collet	ISO30
Software	UG
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Lubrication system	Automatic lubrication system
Tool sensor	Automatic tool sensor calibration
Position cylinder	Auto Position cylinder
Optional	Japan Shimpo reducer; 4kw vacuum pump; Automatic oil sprayer cooling system; new type 1.5kw double pocket dust collector;

PS: All the working area and specifications can be customized according to your requests.
Product Details
Packaging & Delivery: Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Our Factory:
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform! Just looking forward to service every customer, like you.
Contact us:

Web: blueelephant-cnc.en.made-in-china.com

---
