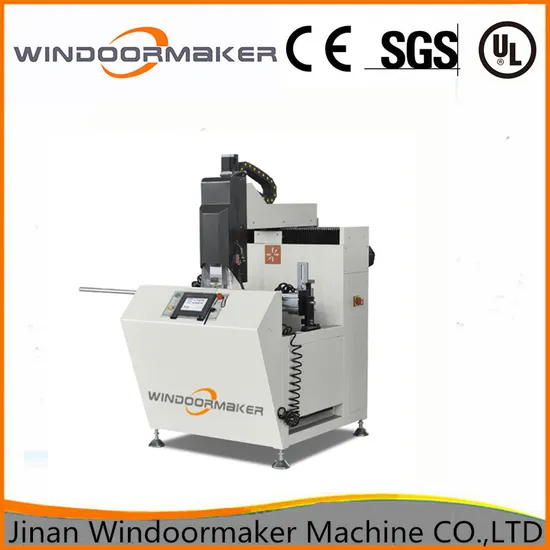

CNC Drilling and Milling Machine for Aluminum/PVC Profile Door and Window Making Build a CNC Machine Scratch

Product Description

Product Description
Specification:
Used for do all kinds holes like drilling holes, circle, door lock hole etc. With CNC system make sure machine running smoothly. Adopt with high precision electrical axis, keep working safety. X,Y,Z axis adopt with square guide rail, The working table can be rotated in -90°,0°,+90°.so one time clamping can achieve three sides processing of profile. With spraying cooling for saw blade. With 2.2KW air cooling spindle Graphical drawing stored in CNC program, only need change the hole size. Technical Parameter:

Power supply	Made to order
Spindle power	2.2KW
Rotary speed	0-18000r/min
Operation air pressure	0.6~0.8Mpa
Working stroke of X/Y/Z	X=450mm,Y=320mm,Z=290mm
Working speed of X/Y/Z	X=0-10M/min, Y=0-10M/min, Z=0-10M/min
The specification of blade	ER20 × φ8
Dimension	950×1560×1700mm(LxWxH)
Weight	400kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
