Black Tungsten Rod & Polished Tungsten Rod, Ground Tungsten Heavy Alloy Rod, Forged Pure Molybdenum Rod and Pure Wolfram Rod 99.95% W-1 Tungsten

Product Description

High Quality Pure tungsten rods

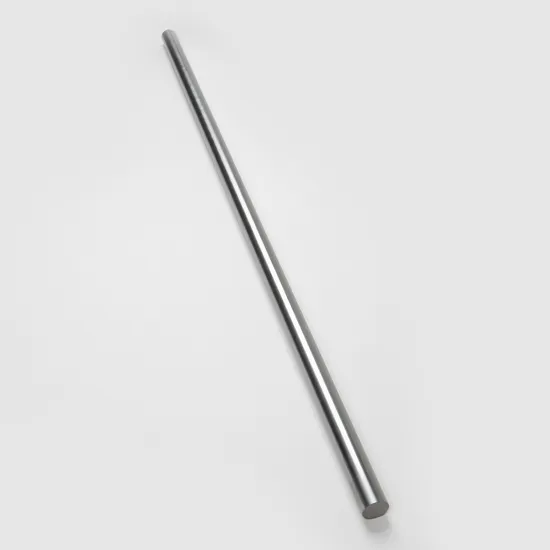

1. 99.95% Pure Tungsten Rods
Excellent price 99.95% black tungsten rod
1)Purity: ≥99.95%
2)Forged density:>19.2g/cm3
3)Welding tungsten rod: WT WL WP WC WY, and dia1.0-10mm Length: 150/175/1100mm
4)Surface:black,ground,polished
5) Rod Size: diameter2-120mm Length<2500mm
6)Straightened rods after drawn diameter0.8mm-3.2mm
High Quality tungsten electrode (WP, WL, WT, WC, WY, WZ, etc)
1) Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0,10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
2) Length: 150mm, 175mm, 800-1100mm, etc.
3) Surface: polished, ground, black.
4) Density: 19.2g/cm3
5) Tungsten electrode rod appearance: the surface is smooth and straight, no defects.
Available Wolfram tungsten electrode for argon arc welding We have many kinds of tungsten electrode type:

Trademark	Added impurity	Impurity quantity	Other impurities	Tungsten	Electric discharged power	color sign
WT20	ThO2	1.7-2.2	< 0.20	The rest	2.0-3.0	Red
WP	---	---	< 0.20	The rest	4.5	Green
WL10	La2O3	0.8-1.2	< 0.20	The rest	2.6-2.7	Black
WL15	La2O3	1.3-1.7	< 0.20	The rest	2.8-3.0	Goldyellow
WL20	La2O3	1.8-2.2	< 0.20	The rest	2.8-3.2	Skyblue
WC20	CeO2	1.80-2.20	< 0.20	The rest	2.7-2.8	Grey
WY20	YO2	1.8-2.2	< 0.20	The rest	2.0-3.9	Blue
WZ8	ZrO2	0.7-0.9	< 0.20	The rest	2.5-3.0	White

Pure tungsten electrodes-WP(marked green color)
Thoriated tungsten electrodes- WT10(marked yellow color)
WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)
Lanthanum tungsten electrodes-WL10(marked black color)
WL15(marked gold color)
WL20(marked blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked sky blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color) Available sizes: (10pcs in one plastic packing)
1.0mmX150mm, 1.0mmX175mm1.6mmX150mm, 1.6mmX175mm2.0mmX150mm, 2.0mmX175mm2.4mmX150mm, 2.4mmX175mm3.0mmX150mm, 3.0mmX175mm3.2mmX150mm, 3.2mmX175mm
Tungsten high heavy alloy WNiFe WNiCu
Material:W90-97NiFe(Magnetic)&W90-97NiCu(Nonmagnetic)
Density:16.8-18.8g/cm3
High Heavy Alloy ASTM B777-07 rods/sheet/tubes
- Material: W90-97NiFe(Magnetic) & W90-97NiCu(Nonmagnetic)
- Rods Size:dia(1.5 -200) x Length<500mm
- Plate size: 0.1min Thickness*W*L
1. Tungsten copper alloy rod Specification:
Material: W50-90Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: diameter(3-100mm)*L<500mm
2. Pure tungsten/molybdenum rod surface finish:
Black: surface is as swaged or as drawn, retaining a ciating of processing lubricants and oxides.
Cleaned: Surface is chemically cleaned to removed all lubricants and oxides.
Ground: Surface is centerless to ground to remove all coating and to achieve precise diameter control.
3. Pure tungsten rod dimension:

Tungsten Content	Type	Diameter (mm)	Dia.Tolerance (mm)	Length (mm)	L tolerance (mm)
99.95%	Sintering rod	40-100	±3	500max	±5
99.95%	Froged rod	20-80	±2	800max	±5
99.95%	Ground rod	2-60	±0.1	600max	±1

Tungsten rods available size:
Forged rods size: Diameter(2-100mm)*Length<2500mm
Strainghtened rods after drawn diameter 0.8-3.2mm
4. Chemical composition

Content of Tungsten	Content of all other elements	Content of each element
≥99.95%	≤0.05%	≤0.01%

5. Application & Features
Used as electrodes in the field of rare earth metal industry;
For producing electric light source parts and electric vacuum components;
Used in electric boosting glass kiln electrode;
Suitable for producing ion implantation parts;
For producing heating elements and refractory parts in high teperature furnaces;
Very good interlaminar strength at strong thermal and mechanical loadings
6. More information about us:
We promise you -- The advantage of us: 1) products quality, with many years of producing experience 2) low price in the market, and factory direct sales. 3) the whole production line from powder to finished products, top and steady quality assured
4) good packing for safe exprot delivery, and fast manufacturing time 5) fast delivery and best after-sale service.

---
