US$6,500.00-6,800.00
|
1 Set
(MOQ)
|
Basic Info.
Required Paper
Single Side PE Coated Paper
Logo Printing
Without Logo Printing
Usage
Packing Paper Machine
Type
Paper Folding Machine
Voltage Request
220V50Hz/380V50Hz or Customized
Paper Request
150-350G/M2
Transport Package
Wooden Case
Production Capacity
100sets/Month
Product Description
1)Introduction

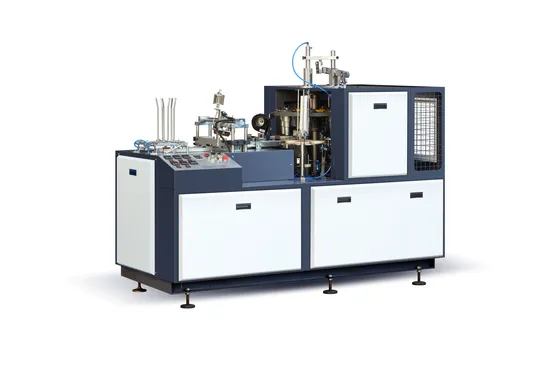

LF-70 paper cup machine is the automatic with multi-running positions. It produces single PE cups through the procedure of automatic paper feeding, bottom knurling, curling and cup stack. This kind of cup can be used for tea, coffee, milk, ice-cream, etc.
2)Features
1.Adopt CAM and chain transmission system. machine run stably at long lifetime.
2.The parts are all made of standardized production, strong commonality, swap performance is good, easy to maintenance.
3.The semi-automatic lubrication system, can ensure the machine long time and continuous high-speed operation.
4.The machine is a compact paper cup machine helping clients to save 60% shipment cost. One 40 feet container can loading 10 machines.
5.The machine parts have high precision and low noise.
3)Machine Technical Parameters
| General power | 4.5kw |
| Voltage supply | 380v50hz or customized |
| Cup size | 1.5-12oz |
| Speed | 65-75pcs/min |
| Weight3660 | 1600kgs |
| Measurement | 2200*1150*1800mm |
| Paper request | 190-350g/m2 (single PE paper & double PE paper) |
| | |
| | |
4) MAIN PARTS LIST:
| NO. | Description of the equipment | Brand/ Specification / Model , |
Electric Appliance | Transducer | Quanzhou Sanqi |
| Contractor | China CHNT |
| Temperature controller | Shanghai YATAI |
| Motor | Zhejiang MAILI |
| Machine appliance | Chain | China-Hangzhou DUNPAI/ZIQIANG |
| Axis | 45# steel |
| Guide Post | CR15 |
| Cylinder | 80*125 China YIDA |
| Cam | 45# |
| Bottom cutter | CR15 |
| Knurling seat | CR12 |
| Knurling wheel | 40CR |
| Bearing | 5204,5203,32008/Japan-NJK |
| 6201/ China-heerbin |
5)AFTER SERVICE:
1. Paper Cup making Machine warranty: 1 year
2. the guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, adjustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole lesson!
6. we supply the consumable spare parts for free for one year use.
>>
