Ce Certification for 5L Lubricant Bottle Blow Molding Machine

Product Description

Dawson machinery and mould group
Blow molding products cover a wide range, which can be broadly divided into two categories: daily necessities and industrial products. The container includes: a packaging container, a large-capacity storage tank/storage tank, and a collapsible container. However, with the maturity of the blow molding process, there are more and more blow molded products for industrial parts, and the application range is increasingly wide. At present, containers account for about 80% of the market, an annual increase of about 4%; while industrial and structural products account for 20% of the total, with an annual growth rate of 12%. The increase in container consumption is due to the expanding application range of twistable and twisted plastic containers. The increase in consumption of industrial products is mainly due to the improvement of new processing technologies, such as multilayer parison extrusion, biaxial extrusion, and non-axisymmetrical blow molding, etc.

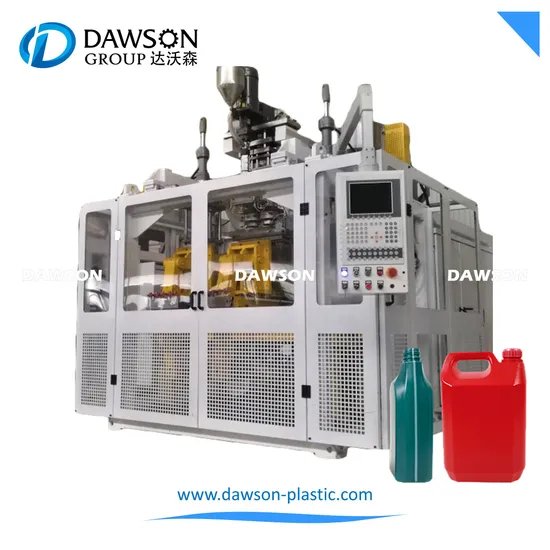

Double Station Extrusion Blow Molding Machine TP5D-75
Type TP5D-75
Extrusion Blow Molding Machine
Double Station Single Head
*Volume 1L to 5L
*Net Weight 100-280g
*Output 250-380 pcs/hr.
Standard Features 1. Double station blow molding machine with 75mm grooved extruder.
2. Single, double triple and quadruple head capacity.
3. Reliable two-plate axes mould locking.
4. Processing HDPE, LDPE, PP capacity.
5. Multi-blow extrusion heads with quick color change.
6. In machine automatic deflashing and cooling station.
7. Nitrided screw and berrel.
8. Adopt hydraulic accumulators.
9. Low power consumption.
10. Up blowing system.
11. Machine control by microprocessor B&R
12. SERVO valve for hydraulic and 100/300 point Parison thickness.
13. Gripper for bottle take out inside machine.
14. Carriage fast movement by Prop Valve.
15. Safety ladder and rail protection.
Die head This machine when using single die head, can make 2L to 5L bottles,
However, the die head can also be changed to double die head, triple die head and 4 head to be able to make other smaller size bottles. Single die head (2~5L)
Double die head (0~2L)
Triple die head (0~750ml)
Four die head (0~500ml) Changing the die head system takes around 1.5~3h, this also included heating time.
Configuration

Main Part	Brand
Servo oil pump	REXROTH from Germany
High pressure oil pump	YUKEN from Japan
Pneumatic	FESTO from GermanyorSMC from Japan
Proportional valves	REXROTH from Germany
Directional valves	YUKEN from Japan
Control system	B&R From Austria
Frequency converter	ABB From Switzerland
Contactor	SCHNEIDER From Franch
Linear roller bearings	HIWIN from TAIWAN
Motor	SIEMENS from Germany
Gearbox	SEW from Germany
Electronic ruler	Novotechnik from Germany

.#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China

Type of Blow Molding Machine

Extrusion blow molding In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected. EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows: 1. Continuous Extrusion Equipment Rotary wheel blow molding systems Shuttle machinery 2. Intermittent Extrusion Machinery Reciprocating screw machinery Accumulator head machinery Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums. Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers. Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking. Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.

Plastic machines we provide ....

Extrusion Blow Molding Machine Injection Blow Molding Machine PET Blow Molding Machine Injeciton Molding Machine Injection Stretch Blow Molding Machine

Applictions ....

Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets. Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields. House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life. Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere. Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications. Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels. Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.

---
