China Foundry Machine Supplier Design Cast Machine Foundry Moulding Machine Cast Molding Machine Jolt Squeeze Molding Machine

Product Description

Product Description

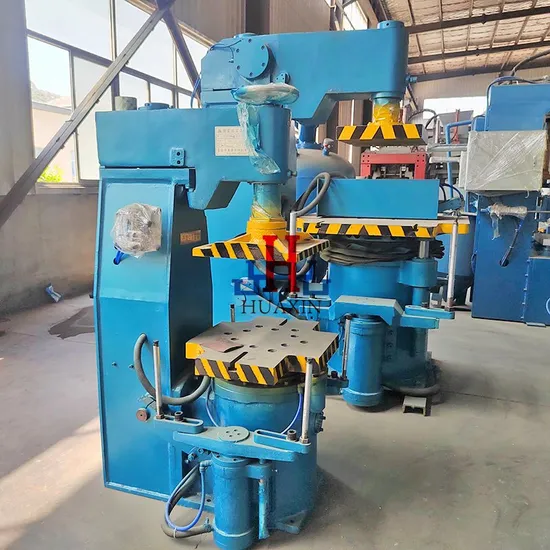

Z14 series pneumatic micro-shock compaction molding machine
Jolt squeeze molding machine , Air Jarring moulding machine
related machine name:
Foundry Machine
Cast Machine
Molding Machine
Automatic Moulding Machine
Foundry Moulding Machine
Sand Molding Machine
Squeeze Molding Machine
Cast Molding Machin
Cement Brick Making Machine
Interlocking Brick Machine
Metal Moulding Machine
sand molding machine Technical features:
1. The structure of the machine is optimized, and the body adopts a square box frame structure, which greatly improves the rigidity of the fuselage.
2. The machine adopts the vibration molding process, which can greatly improve the pressing strength, so that the sand hardness can reach above HB90, the surface roughness is improved by one grade, and the product quality is stabilized.
3. The shock part of the machine is a spring micro-shock type, which effectively reduces the influence on the foundation.
4. The machine's die-cutting mechanism adopts single-cylinder demoulding and has good synchronism.
5. The control part of the machine adopts pneumatic components to realize the overall function, which is easy to operate and easy to maintain.
6. The machine is easy to operate, visible in the sand type, the operating procedure can be humanized, and the productivity is effectively improved.
Product Parameters
technical index for sand molding machine:

Item no	Z143W	Z145WB	Z146WK	Z147WK	Z148WB	Z148WK	Z149WK
Flask size (mm)	500*400	550*450	600*500	800*600	800*600	1000*630	1050*930
Working table (mm)	560*420	600*550	700*550	800*575	900*730	1200*730	1200*1030
shock load(kgf)	200	300	400	400	600	1200	1200
static squeeze pressure(kgf)	4200	6300	7500	8000	10000	16000	16000
pattern draw travel (mm)	160	180	200	220	250	250	350
Production (box/hour)	40-60	40-60	40-60	40-60	40-60	40-60	40-60

Detailed Photos
Packaging & Shipping
Company Profile
Since its founding in 1998 as Qingdao Huaxin Group, the mission of qingdao huaxin group has been to develop the most innovative solutions possible for the automation of green sand moulding, sand core making machine, sand preparation and shot blasting processes throughout the foundry industry. Continuous technological improvement and innovation have earned nearly 20 intellectual property rights in China.
Today, with nearly 5,000 sand moulding machines and shot blasting systems installed around the world, and its sales and service operations are spread all over the world. Our single focus is, has always been, and will always be the foundry industry.
Qingdao Huaxin Group has over 20 years history In China. It is located in Binhai Industrial Park, Huangdao Area, Qingdao city,China. It is covered an area of sixty-six thousand six hundred and sixty-seven Square meters. We have produced foundry machines more than 1000 types, so we have rich experience in sand casting production machines. The casting production line is Automatic horizontal static pressure molding line, Auto shell molding line, Furan resin sand automatic molding line, Green sandl processing production line(Sand Preparation); the newest patent machine-continuous sand mixer,pouring machine, popular standard machine are Jolt squeeze molding machine, pneumatic multi-piston molding machine, all kinds of cold core / hot core box core shooting machine, various shot blasting machines. We provide excellent supporting equipment and services for China's foundry, shipbuilding, automobile, locomotive, machine tool and other industries. We design and manufacture various non-standard special casting machines according to user needs.

---
