2 or 3 Roller Nonwoven Capet Hot Rolling Machine Calender Textile Machines for Non-Woven Fabric

US$11,000.00-24,000.00 1 set (MOQ)

Basic Info.

Model NO.
GM
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
24 Hours Online Services
Width
2000---5200mm
Heating Roller
2 or 3 Heating Roller
Surface Temperature
<=220
Machine Color
White, Blue or as Your Requirement
Transport Package
Export Standard Packaging
Specification
2 roller, 3 roller
Trademark
RD
Origin
China
HS Code
8449009000
Production Capacity
50 Sets / Month

Product Description


2 or 3 Roller Nonwoven Capet Hot Rolling Machine Calender Textile Machines for Non-Woven Fabric
It is suitable for heating treatment of nonwovens surface to reach required thickness, smoothness, hardness.
Heating method: electric or oil boiler.
Two kind of structural style: 2-rollers vertical and 3-rollers vertical.
Temperature is auto-controlled and digital displayed.

2-rollers calender

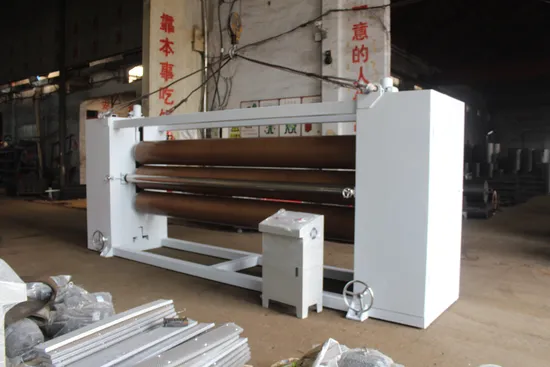

3-rollers calender
NO. ITEM DESCRIPTION
1 Model GMC-200
2 Running speed ≤8m/min
3 Power 25kw
4 Structural features 1:Three-roll vertical, electric heat conduction oil heating insulation. The main body frame is made of high quality carbon steel welded together
2: At the bottom of the roller is adjustable, in the middle of the roller is fixed, the upper roller manual worm gear to adjust elevator, the adjusting range is 0 to 50mm
5 Heating roller Φ510mm; Material of 45 # steel, wall thickness, 30mm roller surface 2000mm long, fine grinding hard chrome plated surface or tetrafluoroethylene adhesion. Adjustable surface temperature of 100 ~ 220 ºC
6 Power 81 kw (every roller adopts nine hits 3 kw heating, electric heating tube is divided into three group control)

Features:
1. Frequency conversion controlled speed.
2. Automatic temperature control ensuring constant heating temperature
3. Hermetic thermal oil makes the heating effect evenly.
4. Heating roller: Teflon surface
Calender in production


Whole production line of nonwoven carpet / felt
Products--- nonwoven felt
If you have interest in our products, please feel free to contact me.-----Amber
