Welcome to visit

Pet Fruit Juice Drink Bottle Making Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ZQ-B600-6
Making Method of Parison
Injection Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Engineers Available to Service Machinery Overseas
Number of Cavity
6 Cavities
Products Output
7000-8000bph
Max Volume
600ml
Auto Systems
Fully-Auotmatic
Delivery Date
30 Days
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
100-600ml
Trademark
ZIQIANG
Origin
Taizhou, China
HS Code
8477300000
Production Capacity
30 Sets/Month

Product Description

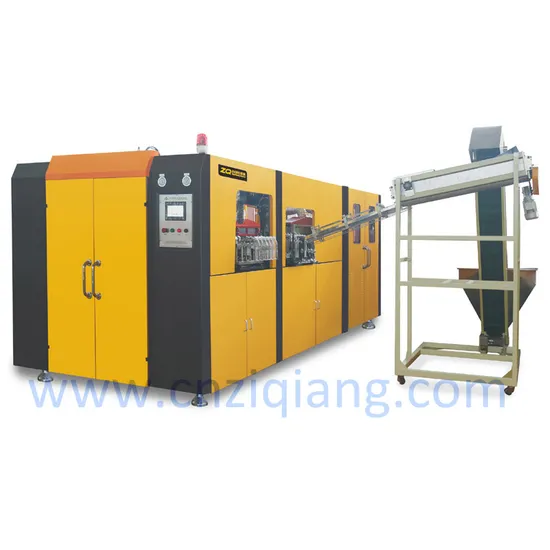

Pet Fruit Juice Drink Bottle Making Machine
ZQ-B600-6 model(6-cavity), 7000-8000PCS/h, it's special design for small volume bottles which below 600ml. High productivity but lower energy consumption and price, which is about half the price of rotary model.
ZQ-B series is the most stable two-step fully automatic high-speed linear stretch-blow moulding machines. The capacity of the products is from 0.25L to 2.0L. It can blow pet bottles for different use: Carbonated, mineral water, milk, beer, oil, hot filling tea, and other drink packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
Pet Fruit Juice Drink Bottle Making Machine,advantages
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Pet Fruit Juice Drink Bottle Making Machine,equipment information.
TYPE ITEM ZQ-B600-4 ZQ-B600-6
CONTAINER Number of cavity 4 cavities 6 cavities
Output 5500-6000 pcs/hr 7000-8000 pcs/hr
Max.container volume 0.6L 0.6L
Max.neck diameter 38mm 28-30mm
Max.container diameter 65mm 60mm
Max.container height 230mm 260mm
ELECTRICAL SYSTEM Number of lamp 35pcs 56pcs
Max.heating power 32kw 34kw
Installation power 32kw 48kw
Actual power consumption 22kw 24kw
AIR SYSTEM Operatating pressure 7-9kg/cm² 7-8kg/cm²
Low pressure consuming 1600Ltr/min 1600Ltr/min
Blowing pressure 25-35kg/cm² 25-35kg/cm²
High pressure consuming 2200-2500 Ltr/min 2000-2200 Ltr/min
CHILLER WATER Operating pressure 5-6 kg/cm² 5-6 kg/cm²
Temperatuer 10ºC 10ºC
Consuming 5600kcal/hr 8000kcal/hr
Flow rater 30Ltr/min 88Ltr/min
MACHINE Machine dimension 3.7x1.95x2.1(m) 5.0x2.1x2.1(m)
Machine weight 3.7ton 5.0ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
