Basic Info.
Certification
ISO9000, CCC, TS16949, EEC, RoHS, CE
Transmission Type
Automatic
Front Passenger(Person)
3
Fuel Consumption (L/Km)
16.2
Chassis Model
Hfc1081p31K1c7zs
Approach Departure Angle
25/18
Transport Package
Comply with Export Packaging Requirements
Specification
6630*2130*2600mm
Production Capacity
50000
Packaging & Delivery
Package Size
663.00cm * 213.00cm * 260.00cm
Package Gross Weight
8280.000kg
Product Description
China Top Brand Sanitation Trucks Euro6

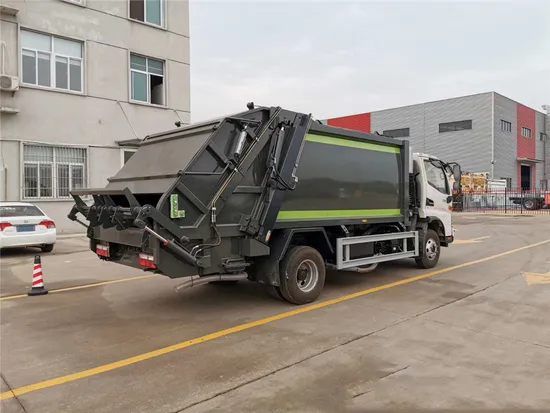

8m3 V7 Garbage Compactor Truck CLW5080ZYSH6
MAIN PERFORMANCE 1. Good Quality 2. Lower Price 3. High efficiency 4. Good Environmental Protection 5. High Vehicle Utilization Efficiency
FEATURE
CLW5080ZYSH6 compression garbage truck is widely used in urban garbage cleaning and treatment.
It is suitable for garbage collection and compression in residential areas, commercial areas, streets, etc.,
which improves the efficiency of garbage transportation.
Efficient compression system
The vehicle is equipped with an advanced compression system to minimize the volume of garbage and improve the efficiency of garbage transportation. | Strong stability
The design structure is stable to ensure smooth operation under various road conditions. | Energy saving and environmental protection
The use of advanced environmental protection technology reduces exhaust emissions and meets contemporary environmental protection standards. |
| Main technical parameters of CLW5080ZYSH6 garbage compactor truck |
| Vehicle Model | CLW5080ZYSH6 | Announcement batch | 330 |
| Dimensions (mm) | 7110,6654,6630×2130×2600 | Tank volume (m3) | |
| Total mass (kg) | 8280 | Rated mass(kg) | 2185,1900 |
| Curb weight(kg) | 5900,6185 | Front passenger(person) | 3 |
| Axle load(kg) | 3000/5280 | Exemption | no |
| Maximum speed (km/h) | | Fuel | no |
| Fuel consumption (L/Km) | 16.2 | Environmental friendly | no |
| Fuel Type | diesel fuel | Emission standards | National VI |
| other | 1. The left and right side protection devices are made of Q23** carbon steel. Connection method: The left and right side protection devices are welded. The rear protection is replaced by a special device with a ground clearance of 430mm. 2. ABS system actuator model: CM4XL-4S/4M, ABS system actuator manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., the optional ABS system model/manufacturer is VIE ABS-2/Zhejiang Wanan Technology Co., Ltd. 3. The corresponding relationship between the engine model and the fuel consumption value is (L/**km): D30TCIF2/16.2. 4. Special devices: hydraulic mechanism and stuffer, mainly used for the transportation of urban sanitation garbage. 5. The tail flip mechanism style is optional. 6. The corresponding relationship between vehicle length/wheelbase/front overhang/rear overhang/rear extension is (mm): 6630/3365/1051/1964/250; 6654/3365/1075/1964/250; 7110/3845/1051/1964/250; 7110/3845/1075/1964/226. The corresponding relationship between wheelbase/curb
weight is: 3365mm/5900kg, 3845mm/6185kg. |
| Chassis parameters |
| Chassis model | HFC1081P31K1C7ZS | Chassis brand | J-A-C |
| Number of axes | 2 | Front wheel track (mm) | 1695 |
| Wheelbase(mm) | 3365,3845 | Rear wheelbase(mm) | 2185,1900 |
| Number of tires: | 6 | Tire specifications | 7.50R16LT 14PR,8.25R16LT 14PR |
| Approach departure angle | 25/18 | Front and rear overhang | 1051/1964,1075/1964 |
| Engine parameters |
| Engine Model | Engine manufacturers | Displacement(ML) | Power(KW) |
| D30TCIF2 | Yunnei | 2977 | 120/163 |
>>
