Transformer Oil Purification and Decoloration Machine

Product Description

Product Description

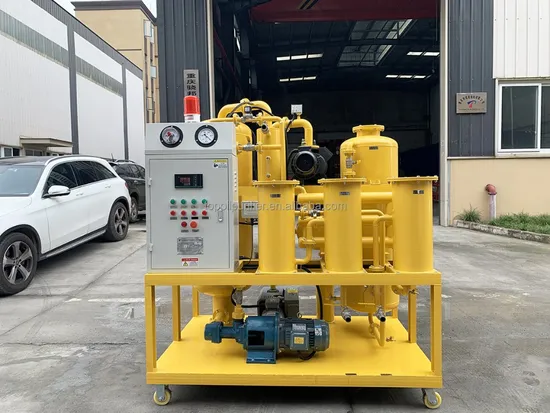

Product Show:
Transformer Oil Purification and Decoloration Machine Application:
The Oil regeneration system (Series ZYD-I) is specially designed for on-site use to completely regenerate insulating oils in energized or de-energized transformers. Besides dehydration, degasification and particulate removal, ZYD-I system also has the capability of removing acidity, sludge, and other soluble oil decay products and discolorizing oil. These are accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. After the treatment, the oil can be reused as new. For special application, the system can also be installed and operated on a trailer with a leak proof base.
Regular servicing of transformers with our equipment can substantially improve their lifetime and performance and on top helps to save money.
Features: 1.The plant is delivered ready for operation.
2.It provides regular oil purification but also removes acidity, sludge, other soluble oil decay products and discoloration.
3.Degasification, dehydration and filtration processes to purify various kinds of insulation oils in electrical transformers and circuit breakers through one or several passes.
4. There are two vacuum pumps for plant ZYD-I (one is the vacuum pump, and the other one is the roots pump), which can improve the vacuum value highly, ensuring the water-content of the treated oil is less than 3 PPM.
5. All oil treatment plants, including series ZYD-I, are equipped with an automatic Anti-Foam Control System.
6. The plant is equipped with built-in control and safety devices, which provide maximum operating security.
7. Minimized power consumption through optimized degasification (an excellent efficiency factor).
8. Standardized filter housing for 5 micron, 20 micron and 80 micron filter cartridges.
9. Automatic supervision of the degree of contamination of the fine filter cartridges
10. ZYD-I can evacuate the electric equipment separately, such as the transformer. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.
11.Reliable and automatic, The machine adopts the double-infrared liquid automatic controller, pressure automatic-protector which can make sure the machine works online for 150 hours continuously without person.
12. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor so as to avoid heating with no liquids, pumping with no liquids, oil leakage and electricity leakage. If there is any fault, machine will be power off automatically.
13. Functions of vacuum drying and vacuum oiling, as well as live-line working on site.
Technical Parameters:

Parameters		Unit	ZYD-I -30	ZYD-I -50	ZYD-I -100	ZYD-I -150	ZYD-I -200	ZYD-I -250	ZYD-I -300
Flow Rate		L/min	30	50	100	150	200	250	300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working vacuum		MPa	-0.08 ~ -0.099
Working Pressure		MPa	≤0.3
Temperature Range		ºC	20 ~ 80
Power			AC380V/50HZ/3Ph 5 wire (can be customized)
Working Noise		dB(A)	68	70	70	75	75	75	75
Heating Power		kW	30	36	48	60	80	108	120
Total Power		kW	36	44	54	70	93	120	135
Inlet/Outlet		mm	φ32	φ32	φ42	Φ42	Φ48	Φ60	Φ76
Weight		kg	850	1000	1100	1250	2200	2600	3000
Overall	L	mm	1700	1750	1800	1900	2000	2150	2200
	W	mm	1200	1300	1400	1450	1500	1550	1600
	H	mm	2200	2250	2450	2450	2450	2450	2450
Index after filtering	Breakdown Voltage	kV	≥75
	Moisture content	PPM	≤3
	Gas content	%	≤0.1
	Impurity size	micron	≤1 (no free carbon)
	Value β	%	98
	Cleanness	NAS1638	≤ 6
	Flash Point (Close)	ºC	≥135
	Acid value	mg KOH/g	0.01
	Interfacial tension	N/m	≥145
	Dielectric loss factor		≤0.01
	Color		Light yellow(close to water)

Product Details:
Payment Terms:

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

After-sale Service:
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service. * We guarantee the maintenance time no more than 3 working days and response time within 1 hour.* We build instrument service profile for our clients to record the product service and maintenance conditions.* After instruments start service, we will pay follow-ups to collect the service conditions.
