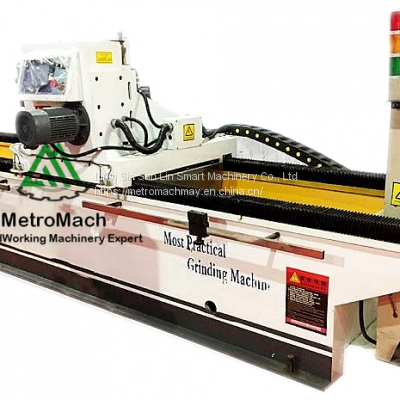

Automatic Plywood Peeling Knife Grinder Machine
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.
3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters:
| Machine name | Hydraulic grinder |
| Max.grinding length | 3000mm |
| Width of working-table | 180mm |
| Grinding head motor power | 4kw |
| Linear speed for grinding wheel | 15m/s |
| Speed of sliding plate | 12/18m/min |
| Tilting range for working-table | 90° |
| Overall dimensions | 5300×1250×1300mm |
| Weight | 2850kg |
