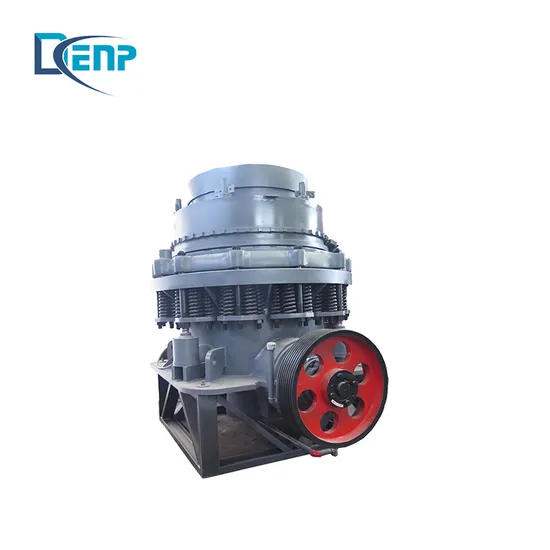

High Quality Mini Spring Cone Crusher for Rock Crushing Sand Making

Product Description

High Quality Dpsb160 Cone Crusher for aggregate processing rock crushing sand making
Cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry. Cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. Type of the crushing cavity is decided by the application of the ores. Standard type is for PYZ (secondary crush); middle type is for PYD (tertiary crush); short-head type is for primary and secondary crush.

Features
1. high productivity; high quality
2. less machine stop time
3. easy maintenance and low cost
4. unique crushing ability in primary, secondary and tertiary crushing

features and value:
High capacity and yield
High equipment quality
Easy and cost-effective maintenance
Application flexibility
Easy to operate
Durable parts

Structure & operation principles

The cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
Size (AF36)PYYX-0912 (AF45)PYYX-1112 (AF60)PYYX-1612

Feeding Size mm(in.)		E C C	Size of Screen mm(in.)				Crushing Capacity (t/h)	E C C	Size of Screen mm(in.)					Crushing Capacity (t/h)	E C C	Size of Screen mm(in.)				Crushing Capacity (t/h)
Max.	Min.		5 ( 3 /16)	13 ( 1 /2)	20 ( 3 /4)	30 (1 3 /16)			5 ( 3 /16)	13 ( 1 /2)	20 ( 3 /4)	30 (1 3 /16)	40 (1 1 /2)			13 (1 1 /2)	20 ( 3 /4)	30 (1 3 /16)	40 (1 1 /2)
100 (4)	0	M	30	60	85	115	125	M	45	90	125	165	205	205	M	130	185	225	320	485
		L	30	65	95	130	145	L	50	100	140	195	250	260	L	150	215	295	375	575
	20 (3/4)	M	25	50	75	100	105	M	35	75	105	150	165	170	M	115	160	220	280	405
		L	25	55	80	110	120	L	40	85	125	170	210	215	L	130	185	255	325	475
80 (3 1 /8)	0	M	30	70	95	120	125	M	50	100	145	190	/	205	M	145	210	290	360	485
		L	35	75	105	145	150	L	55	110	155	220	260	265	L	170	240	335	420	580
	20 (3/4)	M	30	55	80	110	105	M	40	80	115	155	/	165	M	120	170	235	295	400
		L	30	60	85	115	120	L	45	90	130	180	210	215	L	140	200	275	345	415
60 (2 3 /8)	0	M	35	80	110	/	130	M	50	105	150	200	/	205
		L	40	90	125	/	150	L	60	130	185	260	/	165
	13 (1/2)	M	30	65	95	/	105	M	45	90	130	165	/	170
		L	35	70	105	/	120	L	50	110	155	210	/	215
	20 (3/4)	M	30	60	85	/	100	M	40	85	120	160	/	160
		L	30	65	95	/	115	L	45	100	145	200	/	205
40 (1 1 /2)	0	M	45	100	130	/	130
		L	50	110	150	/	150
	13 (1/2)	M	35	75	105	/	105
		L	40	85	120	/	120
	20 (3/4)	M	30	65	95	/	100
		L	35	75	105	/	115

Relevant client case Sand Making Solution for 800T/H Limestone in Suzhou, Shanxi Province

Day operation amount:0

Feed requirements:≤1500mm

Composition:

The main equipment:limestone etc.

Solution for 150T/H Gold Ore in Hubei Province

Day operation amount:0

Feed requirements:≤630mm

Composition:

The main equipment:gold or silver ore etc

Crushing Solution for 300T/H Iron Ore in Zanhuang Hebei Province

Day operation amount:300T/H

Feed requirements:≤630mm

Composition:

The main equipment:iron ore

FAQ:
Is your company an OEM factory or a trading company?
We are the manufacturer of wear parts for crushers, providing wear-resistant parts to many well-known enterprises at home and abroad. You are more than welcome to visit our factory, we will become your excellent supplier.

Quality?
Stable high-end products with highest possible wear life and strong mechanical reliability. DENP brand parts are top quality products.

Shipment?
Try to ensure delivery a 20GP within 40 days. If the order is particularly urgent, it depends on the production plan at the time.

Payment?
30% T/T advanced and the balance of 70% T/T before shipping.

How much is the remaining capacity of your plant?
We are working hard to increase the actual production capacity to reach the theoretical capacity target of 10,000 tons per year. On the other hand, we are adjusting the production plan to try to meet the demand for quality distributors like you.

Why do you use a fine sand recycling system in your factory? How is your surface treated to ensure a good appearance?
The fine sand recycling system ensures that we always use the highest quality fine sand and combined with two-shot blasting treatments to minimize appearance defects and give our customers a better sensory experience.

Is it difficult to produce small items (products below 100kg) and is the delivery period long?
Our main products are 200kg-6000kg. The cost of casting small parts is high, and small parts are generally used to help customers put together a whole container. Since there is no special equipment for small parts, they needs to be put together according to the production plan of other products, so the production cycle will be a bit longer.

Please inform the nearest airport or train station from your factory.
Airport: YIWU AIRPORT(45 minutes by car); Train station: JINHUA RAILWAY STATION (25 minutes by car)

---
