Basic Info.
Power Source
Gasoline,Diesel,Walking Tractor
Portable Harvester Type
Self-Propelled
Certification
QS, ISO9001:2008
Application Field
Agriculture
Transport Package
Fumigation-Free Wooden Box Packaging
Production Capacity
10000set/Year
Product Description

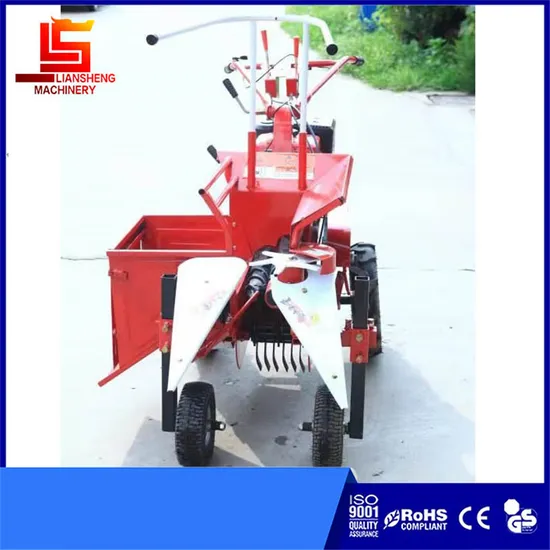

Small single-row corn harvester, hand-push diesel gasoline corn harvester
Corn harvesting straw crushing dual-purpose machine
This machine can complete one row of corn harvesting and straw crushing at a time. Equipped with bucket when it is full can be automatically unloaded.
The height of stubble can be adjusted, the tensioning clutch works safely, and the turning radius is small.
It can harvest two acres of corn per hour and crush the straw at the same time.
1: This machine is compact and adaptable, and is widely used in small corn fields that cannot be passed by large corn harvesters such as hills and mountains.
2: Complete functions, picking corn, crushing straw and returning to the field, etc., almost the same function as the large-scale corn harvester.
3: It is easy to install and disassemble.
4: Flexible operation, adjustable stubble height and small turning radius.
| Model | 4YZ-1(diesel) | 4YZ-1(gasoline) | 4YD-1A(walking tractor) |
| Engine model | 188F diesel engine | 190 gasoline engine | Walking tractor |
| Power | 7.5kw | 8.2kw | 10-15hp |
| Cutter shaft speed | 3200r/min | 3200r/min | 3000r/min |
| Line space | 500-700mm | 500-700mm | 500-700mm |
| Start method | Electric start | Electric start | / |
| N/W | 240 kg | 200kg | 110kg |
| Rows | 1 | 1 | 1 |
| Dimension | 2100*970*1100mm | 2100*970*1100mm | 1200*850*1100mm |
| Efficiency | 2.5mu/hour | 2.5mu/hour | 2.5mu/hour |
| Stubble height | 20-80mm | 20-80mm | 20-80mm |
| Cutting length | 10-80mm | 10-80mm | 10-80mm |
| Blade set number | 12 | 12 | 12 |
Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China
>>
