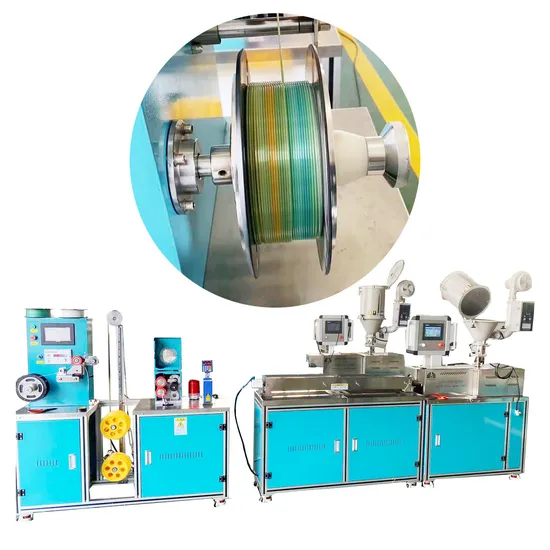

Efficient Sj25 Plastic Extruder for Innovative 3D Filament Production Line Machine
US$12,700.00
1-9 Pieces
US$10,000.00
10+ Pieces
Basic Info.
Model NO.
SJ25
Type
Filament Machine
Plastic Processed
ABS
Product Type
Filament Machine
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Transport Package
Film
Specification
SJ25
Origin
China
HS Code
8477209000
Production Capacity
1kg
Product Description
:Introducing our state-of-the-art SJ25-28 filament extruder, as featured in the video. This exceptional model mirrors the advanced capabilities of our larger extruders, boasting sophisticated servo-driven mechanisms that define excellence.It boasts a precision winding and tension-controlled storage system, ensuring the seamless, uninterrupted production of filament. Screw Diameter: ยข25mm - meticulously engineered for optimal efficiency and performance. Length/Diameter (L/D) Ratio: 28:1 - expertly designed for superior processing performance. Maximum Screw Rotation Speed: 72 RPM - enabling high-speed extrusion with precision. Heating Zones: 3 precisely controlled zones - ensuring uniform thermal distribution throughout the process. Heating Power: 1.2*4 kW - a powerful, yet energy-efficient solution. Heating Ring: Crafted from stainless steel with a ceramic heating method - ensuring robust and efficient heat management. Main Motor Power: 2.2 KW - delivering consistent, reliable motor performance for demanding applications. Motor and Reducer Connection: Straight connection - guaranteeing durability and ease of maintenance. Cabinet Material: Aluminium alloy - chosen for its lightweight nature and resistance to corrosion. Center Height: 960mm - thoughtfully designed for ergonomic operation, enhancing user efficiency. Construction Material: Stainless steel 304 - ensuring unparalleled strength, durability, and longevity. Air Cooling Table Length: 3000mm - designed for effective filament cooling and stabilization. Forming Table Length: 3000mm - engineered for precise and consistent filament shaping. Air Cooling Platform Height: 900mm - optimized for efficient cooling processes. Variable Frequency Control - offering flexible and precise speed regulation for optimal performance. Fan Outlet: Equipped with 4 outlets - ensuring optimal airflow and exceptional cooling efficiency.
