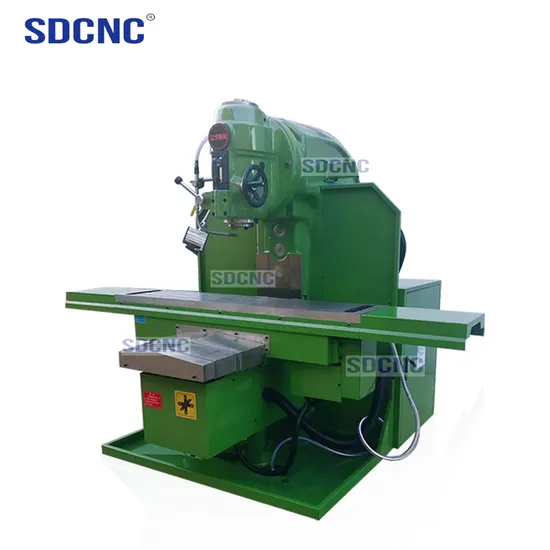

High Quality Xk5032 Vertical CNC Milling Machine 3-Axis Metal Vertical Milling Machine

Product Description

The main performance characteristics:
1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of
machine tool for long-term use.
2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting
vibration body,
3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed,
4. The high speed, high precision and high rigidity spindle unit,
5. The intermittent automatic lubrication.
Application:
1. The product for the X, Y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were
rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.
Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,
2. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.
3. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal
processing equipment.
4. Can be petty four axis of rotation, in order to meet the special requirements of machining parts Product Parameters
Product main technical parameters:

Specifications	Units	XK5032
Table size	mm	1320x320
Table travel(X.Y.Z)	mm	800x280x350
T-type slot (numbers / width /space)	mm	3-18-70
Max. load working table	kg	320
Distance from spindle nose to table	mm	40-390
Distance from spindle axis to column guide way	mm	350
Rapid feed speed(X.Y.Z)	mm/min	6000/6000/3000
Feed speed X.Y(Z)	mm/min	6-3200(3-1600)
Spindle travel	mm	70
Spindle taper		ISO50(7:24)
Max. swivel angle of vertical milling head	°	±45°
Spindle speed range	rpm	30-1500(18 steps)
Spindle motor power	KW	7.5
Longitudinal, transverse feed motor torque(X.Y)	N. m	12
Vertical feed motor torque (Z)	N. m	22
Max. spindle torque	N. m	1000
Overall dimensions(Lx W x H)	mm	1929x2055x1960
Machine weight	Kg	2800

---
