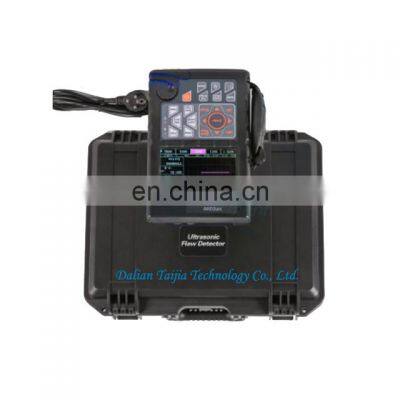

Product DescriptionProfessional ultrasonic instrument Ultrasonic Testing portable flaw detectorThis is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling.Ultrasonic Flaw DetectorFeaturesFeatures of Ultrasonic Flaw Detector1. Automated calibration of transducer Zero Offset and/or Velocity ； 2. Automated gain、Peak Hold and Peak Memory； 3. Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф)； 4. Automated switch three staff gauge ((Depth d、level p、distance s)； 5. 100 independence setup, any criterion can be input freely, we can work in the scene without test block； 6. Big memory of 300 A graph. 7. Gate and DAC alarm；Acoustic-Optical alarm; 8. RS232/USB port，communication with pc is easy； 9. The embeded software can be online updated； 10. Li battery, continue working time up to 10 hours; 11. Display freeze; Ultrasonic Flaw Detector12. Automated echo degree; 13. Angles and K-value; 14. Lock and unlock function of system parameters; 15. Dormancy and screen savers; 16. Electronic clock calendar; 17. Two gates setting and alarm indication; 18. High-speed capture and very low noise; 19. DAC、AVG、TCG、B Scan ; Solid metal housing (IP65); 20. Automated calculate the size of the flaw with w ide bottom type in AVG function. 21. 6dB DAC functions; 22. Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles; 23.Powerful pc software and reports can be export to excel;Detailed ImagesSpecificationsDesignationTechnical DataRange of scanning (mm)0～10000 P-delay (μs) 0.0～99.99 MTLVEL（m/s） 1000～15000Frequency Range (MHz) 0.5~20 Gain adjustment (dB) 0～120 Reject 0%～80% of screen height, step: 1% Vertical linear error Vertical linear error is not more than 3% Horizontal linear error Not more than 0.2% in the scanning range Dynamic range ≥34dB Alarm Three modes, i.e. forbidden wave, loss wave and auto A-Scan display areaFull screen or local A-Scan display freezing and de-freezing Data save 300 A-Scan imagesMeasuring unit mm/inch Battery Li battery 7.4V 4800mAh Power adaptor Input 100V～240V/50Hz～60Hz Output 9VDC/1.5A Working temperature -20℃～50℃ Working humidity 20%～90% Port type LEMO 1 Overall dimension (mm) 240×150×50 Weight (kg) 1.6Our facetoryDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Related ProductsContact InformationDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail: commercial at TEL:86-411-39685079Whatsapp:+8618842866177web:Title goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
>>
