Toplon Class1 Foam Rubber Tube Air Soft Boiler Insulation Tube

Product Description

Rubber Foam Thermal Insulation Rubber Tube TOPLON Class1 Foam Rubber Tube Air Soft Boiler Insulation Material Sponge Foam Rubber Tube PPR Thermal Insulation Pipe

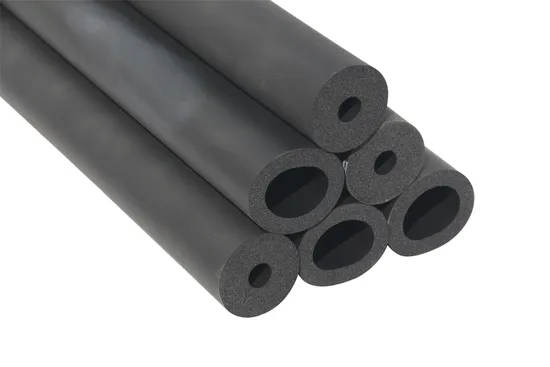

air conditioner thermal rubber insulation tube TOPLON tube is a black, flexible elastomeric foam tube used to conserve energy and prevent condensation on piping applications. The tube closed cell properties create exceptional thermal and acoustic insulation, protect against moisture penetration and provide the best solution for applications within a -280°F to +221°F temperature range. It is primarily used in the HVAC/R market and comes in 6 feet or 2 meet length. It is 25/50-rated, according to ASTM E-84 standards for surface burning characteristics of building materials.

Heating: Excellent heat insulation performance, greatly reduce heat loss, convenient economy installation. Ventilation: Also meet the world's most rigorous fire safety standards, greatly improved the safety performance of the materials, applicable to all kinds of ventilation ductwork. Cooling: High soft degree, easy installation, applicable to the condensate pipes systems, cold media quality system in the fields of the insulation. Air conditioning: Prevent condensation produce effectively, help air conditioning system to improve efficiency and create a more comfortable environment. Wall Thickness: 3/8"Length 6FT(1.83m)
ID size: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-5/8", 1-7/8", 2".

INSULATION PIPE
ID	THICKNESS 6mm 1/4"	THIKNESS 9mm 3/8"	THIKNESS 13mm 1/2"	THIKNESS 19mm 3/4"	THIKNESS 25mm 1"	THIKNESS 30mm	THIKNESS 32mm 1-1/4"
Inch	QTY(PCS/CTN)	QTY(PCS/CTN)	QTY(PCS/CTN)	QTY(PCS/CTN)	QTY(PCS/CTN)	QTY(PCS/CTN)	QTY(PCS/CTN)
1/4"(6mm)	300	168	120	48	\
3/8"(10mm)	210	120	100	36	30
1/2"(13mm)	180	100	80	30	28
5/8"(16mm)	140	90	63	30	24	18
3/4"(19mm)	120	72	56	26	20	14
7/8"(22mm)	80	65	42	24	20	14
1 "(25mm)	70	49	36	20	18
1-1/8(28mm)	60	49	36	20	18	12
1-1/4(32mm)	55	42	30	20	16		12
1-3/8(35mm)	50	36	30	18	15
1-5/8(42mm)	\	30	25	16	12
1-7/8(48mm)	\	28	20	12	10		8
2(51mm)	\	24	20	12	9
2-1/8(54mm)	\	20	18	12	9
2-3/8(60mm)	\	20	18	9	9		8
63		20	18	9	9
2-5/8(67mm)	\	18	13	8	8
2-7/8(73mm)	\	18	13	8	8		8
3(76mm)	\	18	12	8	8
3-1/8(79mm)	\	15	12	6	6
LENGTH PER INSULATION PIPE: 1.83 METER

Black colour.
With good flexibility, strength and appearance.
Brand: U-flex, Superlon, we can also accept OEM order.
Carton Size: 1850*300*400mm
310cartons/40HQ, 126cartons/20GP
1. Product feature:
1). Low density, closed-cell structure, low thermal conductivity, long-using life, low cost of routine maintenance and repairs;
2). Closed-cell structure and the dense skin make the water vapor is not easy through, and low water absorption;
3). Soft materials, Construction easy to install, and pleasing in appearance, smooth;
4). Wide temperature range from -50 degrees to 110 degrees, good weather ability;
5). Excellent fire performance.
2. Application:
Widely used in central air conditioning, construction, chemical, medical treatment, textile, metallurgy, vessel, vehicle, electrical appliance and etc industry and sectors of various hot and cold media pipeline, container, can achieve to reduce the energy saving effect of the hot and cold loss.
