Single Head or Double Heads Beer Keg Filling Machine Equipment

Product Description

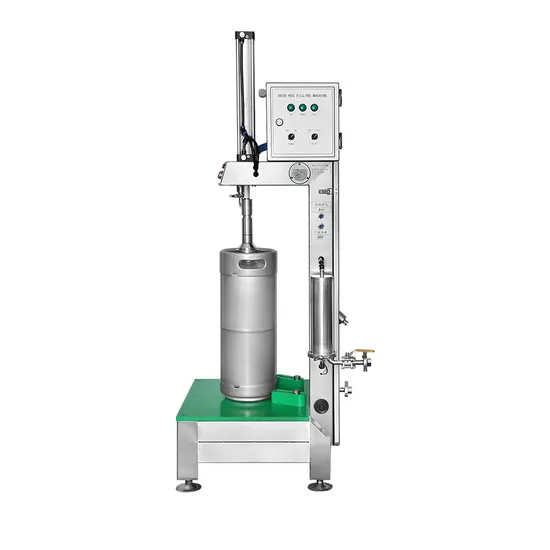

Single Head Beer Keg Filling Machine
Main Technical Parameters

Equipment Outer Dimensions	600*850*1550mm
Net Weight	85KG
Power	30W
Production Capacity	30-40 kegs/H
Filling Method	Keg Topside Up
Applicable Kegs	5L-60L
Power Supply Voltage	customized

Main function and feature
1,All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine.
2,Two sets of washing process for customers to choose.
3,Disinfectant and Caustic could be used repeatedly to save water
4,Water tank possess heating function, the temperature can be displayed on screen.
5,With steam sterilization function (user-selectable).
Working process:
With 2 tanks:
Start (pressing) --- drain residue --- water washing ---drain -- Caustic washing --recycle--- Hot water washing--drain --- Hot water washing --drain --- Steam sterilization --Co2 purge --- Co 2 pressurization -- Stop
With 3 tanks:
cylinder pressing→ air blowing (draining residue) → water wash (drain)→ air blowing (drain) → caustic wash → air blowing (caustic recycle) → hot water wash→ air blowing (drain) →hot water wash (drain)→ air blowing (drain) →water wash (drain)→ air blowing (drain) →sanitizer wash (sanitizer recycle)→ air blowing (sanitizer recycle) →water wash (hot water recycle)→ air blowing (hot water recycle)→steam sterilization (drain)→CO2 replace steam (drain)→ water wash ( hot water recycle)→ Co2 blowing (hot water recycle)→CO2 pressurize
Main function and feature
1,All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine2
2. Pressure maintaining system performance is stable and reliable, to make sure the lowest beer loss compared to other similar products.
3. Could fill the kegs with different volume directly, and do not need to adjust any parameter
4. Equipment with CIP circumfluence pipe, very easy operation.
Working process:
Fix the keg ---Start -- Co 2 pressurization -Filling-- stop-- Take the keg

---
