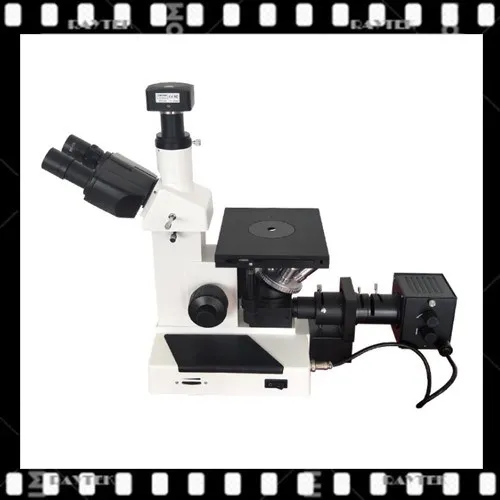

Inverted Metallographic Microscope/Laboratory Instrument/Metallographic Microscope

Product Description

General Introduction: Raytek inverted metallographic microscope has the functions of bright field observation, polarized light observation and dark field observation (optional). It uses the latest optical design, long working distance infinite flat field objective. Its field of vision, resolution, transmittance and other core indicators have reached the first-class technical level. In addition, this inverted metallographic microscope adopts 5W LED lighting, beautiful appearance design, optical design using international cutting-edge compound eye achromatic technology, simple mechanical operation, easy to use.
Products Name: Metallographic Microscope/Inverted Metallographic Microscope/1000x Microscope/1000x Metallographic Microscope
Alias: Metallographic Microscope,Inverted Metallographic Microscope,1000x Microscope,1000x Metallographic Microscope,4XC Metallographic Microscope, Inverted Microscope,etc
Main Technical Data of Fireplace Glass:

Technical Data	Description & Value
Products Name	Inverted Metallographic Microscope
Optical System	Optical system of infinite chromatic aberration correction
Eyepiece	10x large field high field eyepiece, field of view d20mm
Objective Lens	Long working distance infinite flat field objective lens: 5x, 10x, 20x, 50x, 100x, etc
Observation Tube	The hinge type binocular observation tube of the observation tube is inclined 45 degrees, and can rotate 360 degrees, and the eye point height can be increased by 50mm; Pupil pitch adjustment 48-76mm
Digital interface	built in, rear, 0.5 times C interface, separate light separation
Objective Converter	four hole converter for internal positioning
Coarse-Micro Focusing Device	Coarse-micro coaxial focusing, coarse adjustment stroke 12mm, 0.2mm per circle, 2um grid value, loose adjustment of coarse adjusting belt
Loading Platform	Mechanical moving loading platform, with an area of 180 * 155mm, moving range of 50mm*50mm, vernier scale of 0.1mm
Lighting System	5W led long life working lamp, 5-12 low voltage input, adjustable brightness
Power supply	It can be powered by external power supply devices such as computer, mobile phone, load charging and so on
Polarizing Device	Polarizers configurated

Physical, Chemical,Thermal properties:
Applying Fields:

Type	Description
Applying 1	Scientific research and teaching
Applying 2	Metallographic analysis
Applying 3	Semiconductor detection
Applying 4	Geological and mineral detection
Applying 5	Electronic detection

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.

---
