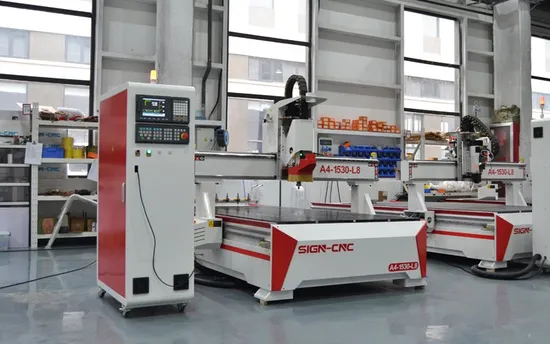

1530 Woodworking CNC Router Machine 3Axis ATC CNC Machine for Furniture Making Cutting
| Model | A4-1530-L8 |
| Working Area | 1500*3000mm |
| Z Axis Height | 300mm |
| Spindle Power | 9.0KW HQD ATC Air Cooling Spindle |
| Spindle Speed | 0-24000RPM |
Inverter
| 11KW Delta high frequency Inverter
|
Drive Motors
| Syntec 1000W AC servo motor and driver
|
Reducer
| Japanese Shimpo planetary reducer
|
Control System
| Syntec 60WE bus control system
|
| Table | Vacuum working table with 5.5kw vacuum pump |
Tool Magazine
| Linear type 8 tools changer magazine
|
Dust Collector
| 3KW dust collector with double bags, stand, brush, pipe, etc
|
Command Language
| G code |
Software
| Artcam with post processor |
| Max. Rapid Travel Rate | 45m/min |
| Max. Working Speed | 30m/min |
| Operating voltage | AC 380V/50HZ/60HZ |
| Operating conditions | Humidity: 30% -75%, temperature: 0 - 45 degree |
| Warranty | Two years |
