Basic Info.
Heating Method
Elextric Heating
Mixer
Hot Mixer and Cold Mixer
Blades
Option According to Material
Temperature Controller
Omron
Operating Type
Cycle Operating
Transport Package
Sea Worth Package
Production Capacity
1000sets/Year
Packaging & Delivery
Package Size
500.00cm * 500.00cm * 251.00cm
Package Gross Weight
25.000kg
Product Description
Product Description
Description

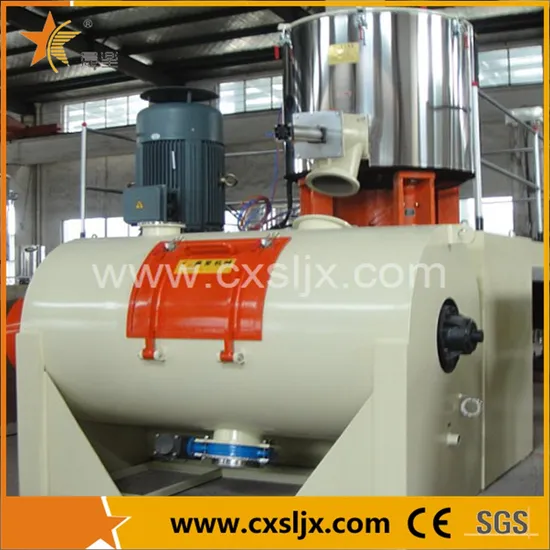

The equipment is used in plastic materials mixing, stirring, coloring, drying. It is an ideal choice to produce plastic plate, pipe, special-shaped material and degradation plastic.
Features
1.It is developed by importing and absorbing overseas advanced technology, and mixing materials adopts negative pressure mixing principle.
2.The electric equipment and meters all adopt imported famous brand.
3.By adopting PLC control, it features high automatic level, good mixing result.
4.The vane is made of stainless steel pressure die cast, and has passed the test of dynamic and static equilibrium.
5.The vane of the cooling machine adopts the spiral agitation. That makes the whole room no dead angle, quickening the cooling speed, discharging thoroughly.
6.Its mixing efficiency has come up to international advanced level.
Product Parameters
main techincal parameter
| Model | SRL-W300/1000 | SRL-W500/1500 | SRL-W800/2000 | SRL-W1000/3000 | SRL-W800*2/4000 |
| Total volume(L) | 300/1000 | 500/1500 | 800/2000 | 1000/3000 | 800*2/4000 |
| Effective volume(L) | 225/700 | 330/1000 | 600/1500 | 700/2100 | 1200/2700 |
| Mixing blade speed(rpm) | 475/950/80 | 430/860/70 | 370/740/60 | 300/600/50 | 350/700/65 |
| Mixing time(min) | 8-12 | 8-15 | 8-15 | 8-15 | 8-15 |
| Motor power(kw) | 40/55/7.5 | 55/75/15 | 83/110/22 | 110/160/30 | 83/110*2/30 |
| Weight(kg) | 3300 | 4200 | 5500 | 6500 | 8000 |
| Heating and cooling way | electric heating/ Self friction/ water cooling |
| Unloading way | Pneumatic |
