Customized Feeding 2 Ton Sling Bag Cement to Silo Machine Pneumatic Conveyor System

Product Description

Pneumatic conveyor
What is Pneumatic Conveying?
Pneumatic Conveying is a cost- and energy-efficient method of transporting dry bulk materials such as powders and granules from one place to another.
A typical example of a pneumatic conveying system that we engineer and manufacture involves conveying a material (such as polymer,lime, soda ash, plastic pellets/powder, dry milk etc.) from a railcar or truck to a silo (or vice versa) in a sealed pipe or tube.Other applications include intermodal/transloading, in-plant transfer, dust control, and portable solutions.
It's important to understand that "pneumatic conveyor" is not a single component. It's a collection of components working in concert as a system.
The basic components of a pneumatic conveying system:
1:An air mover (blower package)
2:Conveying line from intake point containing material (header)
3:Blow Pot (temporary vessel that feeds material into the line)Sealed convey line from intake point to discharge
4:Discharge point (often a vessel, silo, truck, railcar, or process)
5:Filtration system to separate the solids from the gas (air) at the end of the system (bin vent)A control panel to control and automate functions of the system
Introduction
Introduction to Pneumatic Conveying Pneumatic conveying is a specific application of fluidization technology that utilizes the energy of airflow to transport powder and granular materials along the direction of airflow in a closed pipeline. The pneumatic conveying device has a simple structure and is easy to operate. It can be used for horizontal, vertical, or inclined conveying. During the conveying process, it can also perform physical or chemical operations such as heating, cooling, drying, and airflow classification of materials simultaneously.
Note: The feed management system, powder silo, and pressure switch are all optional devices. The standard configuration is an open material level indicator full silo shutdown protection port, which requires customers to connect by themselves.
System Benefits
Efficiency Improvement and More Environmentally Friendly:

The system uses electricity consumption to replace oil consumption, reducing costs and improving transportation efficiency, while reducing vehicle exhaust emissions, improving economic and environmental benefits.
Reduce noise:
When the system is operating, the noise is reduced from more than 100 decibels to a very low 70 decibels. The unloading operation is no longer subject to time restrictions due to nuisance to residents, and can achieve 24-hour unloading and unmanned operation.
Prevent excessive overpressure and solve dust pollution:
Multi-layer pressure protection and material level joint control function effectively eliminate safety hazards caused by overpressure and excessive volume, and solve the problem of silo dust pollution.
Prevent wrong feeding:
The independent matching function of the silo control system effectively prevents the driver from feeding the wrong material.

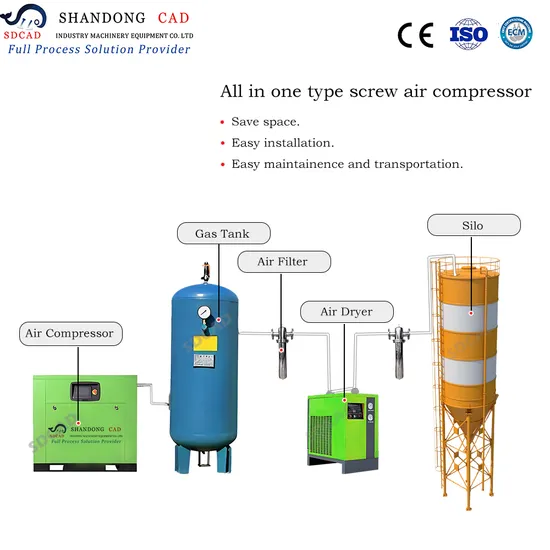

Introducing Components
SDCAD low-pressure screw air compressor:
SDCAD air compressor is a special low-pressure screw air compressor developed entirely for mixing stations. It adopts a fully sealed structure and is waterproof and can be placed directly outdoors without a special machine room. The ultra-large rotor design ensures low-speed operation of the main engine while providing large air volume. All bearings are made of German special bearings to ensure long-term stable and reliable operation of the main engine. The system adds an independent forced lubricating oil pump design to ensure cooling and forced lubrication of various moving parts under low-pressure conditions.

Energy-saving air compressor performance parameter table

Model	Exhaust volume	Exhaust pressure	Power	Conveying efficiency	Conveying temperature	Overall dimensions	Weight
SG-50A/3	12m3/min	0.3KW	37KW	>1T/min	Ambient temperature +10ºC	2000*1200*1630	1400KG

SDCAD water remover
The cold dryer and air compressor realize two-way intelligent joint control to ensure stable and reliable production of low-temperature, dry and high-quality compressed air for customers under year-round climate conditions.

Model	Processing capacity	Drainage method	Working pressure	Water removal rate
SG150-A	12M3/min	Manual/ Automatic	≤1.6Mpa	99%

SDCAD gas tank
SDCAD gas tank adopts the patented design of side air intake internal diversion cyclone, which can play a buffering and efficient water removal effect. The bottom is equipped with an automatic drain valve, which can automatically discharge the physically
separated water in the tank at any time. The top safety valve can release the pressure of 3.5 kg, and it will automatically release the pressure when overpressure, thus playing an automatic protection role for the system.

SDCAD Silo Control System
1. Prevent mistakes in silo feeding;
2. Control and manage the silo monitoring system, automatically cut off the air source when the material is full, eliminate potential safety hazards caused by excessive overpressure, extend the life of the equipment and reduce operating energy consumption
FAQ
Q: Are you factory or a trading company?
A: We are professional manufacture of concrete batching plant and cement silos

Q:what's this screw air compressor ?
A:supply air for powder tank or pneumatic conveyor system.
we have 37KW ,45KW ....air compressor and supply customized design service .
Q: What's your advantage?
A: We are a young and active thinking group, we can design and also can advise special design according the clients detail
requirements.
Q: How about your product quality?
A: We are a factory that only do export, we must keep the high quality product to reduce the after-sale service cost.
Q: Do you supply training and after-sale service?
A: Yes,we will supply installation and training on site and also we have a professional service team that can solve all the
problems as fast as possible.
Q: How about your price?
A: We will promise that you will get what you pay.
Q: Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.

---
