Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Transport Package
Export Packaging
Production Capacity
1000 Pieces/Year
Product Description
Product Description

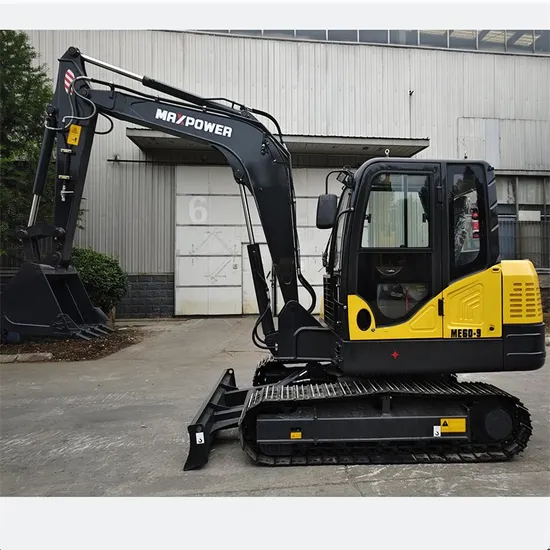

ME 60.9 Excavator compact structure, fast action speed and comfortable operation;Original Japanese Yanmar engine: automatic idle function with low energy consumption.Load sensing hydraulic system: realize precision control on different executive elements, with good controllability and high work efficiency.
Product parameters
| ME60.9 |
| Weight (T) | 5.85 |
| Bucket capacity (m3) | 0.22 |
| engine model | YANMAR 4TNV94L |
| Power (kw/r/min) | 36.2/2100 |
| Fuel tank volume (L) | 100 |
| Walking speed (km/h) | 4.2/2.2 |
| Rotation speed (r/min) | 9.5 |
| Gradeability(%) | 70 |
| Bucket Digging Force (KN) ISO | 39 |
| Ground specific pressure (KPa) | 33.5 |
| Hydraulic pump model | HP5V76 |
| Maximum flow (L/min) | 160 |
| Working pressure (MPa) | 28 |
| Hydraulic tank volume (L) | 80 |
| A-total length (mm) | 5960 |
| B-total width (mm) | 1960 |
| C-Total height (top of boom) (mm) | 1995 |
| D-total height (driving roof) (mm) | 2690 |
| E-Counterweight Ground Clearance (mm) | 700 |
| F-minimum ground clearance (mm) | 360 |
| G-tail turning radius (mm) | 1700 |
| H-track grounding length (mm) | 2000 |
| J-track length (mm) | 2560 |
| K-gauge (mm) | 1560 |
| L-track width (mm) | 1960 |
| M-track shoe width (mm) | 400 |
| N-turntable width (mm) | 1906 |
| O-Maximum excavation height (mm) | 5750 |
| P-Maximum unloading height (mm) | 3980 |
| Q-Maximum excavation depth (mm) | 3860 |
| R-Maximum vertical wall excavation depth (mm) | 3040 |
| S-Maximum excavation depth when excavating 2.5m horizontal plane (mm) | 3440 |
| T-Maximum excavation distance | 6170 |
| U-Maximum excavation distance at ground level (mm) | 6045 |
| V-minimum turning radius (mm) | 2380 |
| W-Maximum height at minimum turning radius (mm) | 4395 |
| X-distance from the center of rotation to the rear end (mm) | 1700 |
| Z-weight height (mm) | 1685(Hood) |
| A1-ground length (when transported) (mm) | 3370 |
| Stick length (mm) | 1630 |
| Boom length (mm) | 3000 |
Detailed Photos
Packaging & Shipping
Complete machine shipment. A small cabinet can hold one unit, requiring disassembly of the forearm and bucket, while a super high cabinet can hold four units, requiring disassembly of the working device. Install 2 complete machines in a 40 foot ultra-high cabinet.
Company Profile
Jining Maxpower Machinery Co., Ltd The founder and teams of Maxpower company has more than 30 years' experience for designing, manufacturing and sales for construction machinery, from 1990s, they worked for the international famous construction machinery company in China, since 2004,the team was separated from the company and has developed his products range from Mini size to large mining excavator.From 2015,the team recognized Jining Maxpower Construction Machinery Company, developed the products such as rotary drilling rig, piledriver, material handling machinery etc.. As the professional company, we can provide wheel loaders, bulldozers and wheel excavators for supporting our customers.During these years, Maxpower has exported its products to more than 30 countries in the world.
We are located in domestic construction machinery manufacturing base, Jining High-tech Zone, with outstanding manufacturing capacity, obvious advantages of supporting resources and abundant human resources.
Based on the refined management of production process and strict quality control system, the reliability and high cost performance of products are guaranteed. At the same time, in pursuit of high efficiency and energy-saving products, achieving a high starting point, high positioning and keeping pace with the world advanced technologies; we have continuously deepened our technical cooperation with the abroad well-known supporting enterprises.
After Sales Service
High-quality products and high-quality services make the products of the Maxpower brand sell well all over the country, and are exported to 50 countries and regions such as Oceania, the Middle East, Africa, Eastern Europe, Southeast Asia, and South America.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,of course.
>>
