50GHz Dual channel high-frequency 2 channels rf slip ring rotary joints

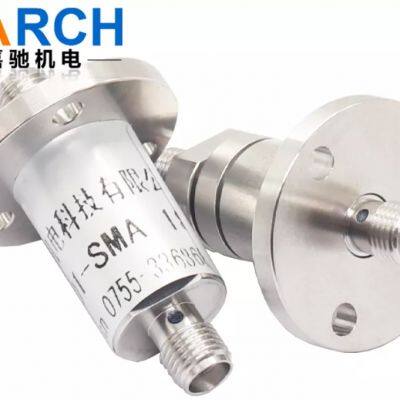

JSR-HF02-SMA-03-06 is a Dual channel high-frequency slip ring. It can support 2 channels of high frequency (3GHz +6GHz) transmission under 360 ° rotation and can be used in high and low temperatures (- 55 ℃ ~ + 100 ℃). The two ends of the slip ring are connected with SMA type connectors, with stable signal transmission, ultra-low attenuation, and long service life. This product has been successfully applied to traditional artificial intelligence traffic control, missile defense radar technology, medical engineering, V-sat and satellite communication technology, TV camera system, or cable drum with sensitive cable wounds.
OD: 31.75mm Frequency: 3GHz/6GHz Passages: 2 passages Connector type: SMA
Technical Parameters
|
Electrical Technical Parameters
|
Frequency Rate(GHz)
| DC-3GHz +6GHz
| Phase Fluctuation(max.)
| 1.0°
|
Voltage Standing Wave Ratio(max.)
| 1.5
| VSWR Fluctuation(max.)
| 0.05
|
Insertion Loss(max.)
| 0.3dB
| Insertion Loss Fluctuation
| 0.05dB
|
Peak Power(max.)
| 1000W
| Average Power(max.)
| 100W
|
Mechanical Data
|
Connector Type
| SMA Female(50Ω)
| Mechanical Internal Structure Type
| TYPE I
|
Material
| External conductor: stainless steel, aluminum alloy
| Surface Treatment
| External conductor: passivation and anodizing
|
Inner conductor: beryllium bronze
| Inner conductor: gold plating
|
Starting torque(max.)
| 0.05N.M@20℃
| Rotating torque(max.)
| 0.05N.M@20℃
|
IP grade
| IP50
| Weight
| 0.1KG
|
Rotating speed(max)
| 100rmp
| Interface size
| GJB52446
|
Environmental Adaptability
|
Temperature(max.)
| -55℃ - 85℃
| Humidity(MAX.)
| 95%(40℃±5℃)
|
Working Life
| 1 million revolutions
|
Use of the coaxial slip rings
Coax slip rings are used to reliably transmit high-energy radio signals, which are common in coax cables. This limits their rotational speed. Higher speeds would provoke spark jumps in the slip ring, which then lead to interference signals. Most applications of coax slip rings are therefore very slow and also do not use the entire angle of rotation. Typical applications for the coax slip ring are as follows:
Camera and security systems for commercial use
Medical scanners or scanners for baggage screening
Underground mining and petroleum extraction
Automation technology
medical applications
Sensor technology
Avionics
Defence and construction vehicles
Radar systems
Drone technology
SATCOM
Wind energy
Benefits
Single Channel / 2 Channel RF Rotary Joint RF Slip Rings
Using light signal transmission, no electromagnetic leakage.
Good sealing.
Resistance to electromagnetic interference
No contact transmission, no wear and tear.
Long life, can be up to 10 million RPM.
No friction, can be used in inflammable and explosive environment.
Can be used in extreme natural environment.
High magnetic current interference, also can work normally.
Installation Instructions
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery
Applications:
• Between in undersea robot and control ship
• Between in radar antenna and on-board signal processing system
• With the chariot rotating tower car body console
• Between in welding robot and console
• Remote mechanical input and output devices and control
• The photoelectric theodolite
• The connection between the platform and spacecraft tracking
