PLC Chain Link Fence Machine Automatic 2 Worms Chain Link Fence Machine Single Wire Chain Link Fencing Machine Supplier

Product Description

Product Description

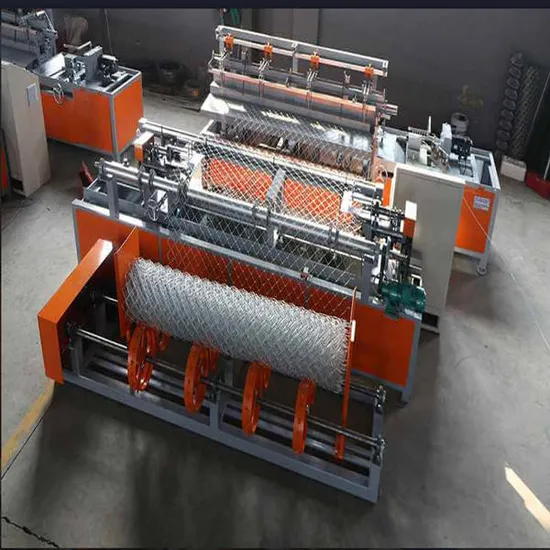

The automatic chain link fence machine is welded of high-quality steel and channel steel with a PLC control system, .It is mainly for producing many different types hole size and mesh width.The machine is controlled by PLC,we can set the length of the fence by it.There is only one worker control the machine.Easy operation and high-speed efficiency. We mainly have two models of machines: BLD100-JZS-A(Double wire) and BLD100-JZD-A(Single wire).The whole line include:main machine,weaving machine and mesh roller machine.
BLD100-JZS-A(double wire) This type of machine adopts a double-sided spiral into the wire to weave the wire mesh. And equipped with automatic locking edge and automatic roll net system. Easy to operate and debug.Type I frame is welded with steel plate, Type II frame is welded with square tube
BLD100-JZD-A(single wire) This type of machine uses a single-sided spiral into the wire to weave the wire mesh. It has high productivity and is equipped with automatic locking and automatic roll netting system.

Technical Parameters
Model	BLD100-JZS-A(double wire)	BLD100-JZD-A(single wire)
Wire diameter	1.8-4.5mm	1.6-4.5mm
Mesh size	25-100mm	25-100mm
Mesh width	500-4000mm	500-6000mm
Mesh Length	30m adjustable freely as your request
Row material	Galvanized wire,pvc coated wire,etc
Mesh side	Knuckled and twisted,or knuckle or twisted
Machine size	5.5M*1.2M*1.5M	4.7M*1M*1.4M
weight	3000KG	2300KG
We can design the machine according to your requirements

We have compact machine or roll machine for your choose

FAQ


Q: Are you a factory? A: Yes, We are factory specializing in the manufacture and export of machines for more than 20 years, all of the production we sale are at a very best price and high quality.
Q:What is your terms of payment? A: T/T 30% as deposit, and 70% balance against B/L copy.
Q: What's the guarantee time for your machines? A: 24 months warrantly, man-made destory will be exception. B: After the warrantee time, we can supply materials or teach support to you for reducing the cost of you.
Q: Can your company send your engineers to my country for machine installation, worker training? A: Yes, our engineers went more than 60 countries before. They are very experienced.
Q: Can you export and supply the customs clearance documents we need? A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

---
