China Quality Vtc45 Vertical Lathe Manual/CNC Lathe for Alloy Wheels

Product Description

China quality VTC45 vertical lathe manual/cnc lathe for alloy wheels
Product Description

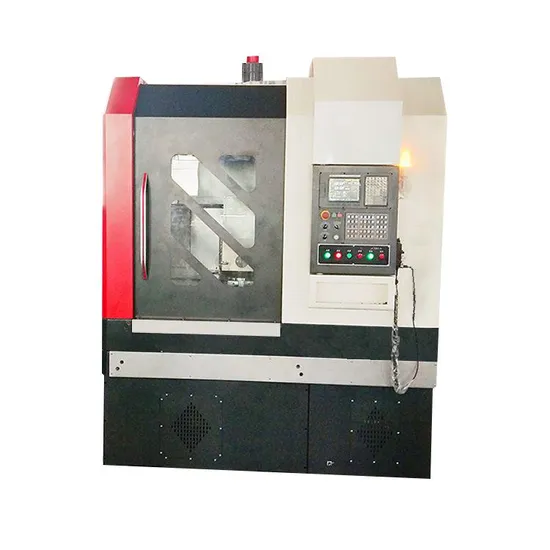

This machine is an automatic vertical cnc lath for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for brake hubs, drums, clutch pressure plates and flywheels. Processing of parts such as alloy wheel.

This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.
Main Features:
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,
heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing
6. Automatic centralized lubrication with full sufficiency and reliability.
Once the machine for car wheels repairing has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!

Product Parameters

Specification	VTC45	VTC65	VTC75
Maximum rotating diameter of machine tool	560	650	560
Maximum cutting diameter	450	600	450
spindle speed range	3000	100~1000	50~1500
cutting feed speed	0.1~1000	0.1~1000	0.1~1000
tool rest vertical movement length	500	600	700
tool rest horizontal movement length	400	450	700
rapid traverse speed vertically	16000	16000	16000
rapid traverse speed horizontally	16000	16000	16000
diameter of hyaraulichuck	500	500	630
main motor power	11/15	18.5	22
positioning accuracy	±0.008	±0.008	±0.008
repeated positioning accuracy	±0.005	±0.005	±0.005
Cross weight	5500	8000	9500
machine tool overall dimension	1700×1880×2500	2000×1950×3000	2450×1900×3200

Application

The machine especially suitable for processing wheel hub, brake hub and other types of short shaft, pump body, disc parts.Suitable for multi-variety, small and medium-sized batch parts processing characteristics, is the automobile, agricultural machinery, engineering machinery, electrical machinery and other industries parts processing preferred equipment.
Packaging & Shipping
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Company Profile
Certifications
Zhongyou company won lots of product patents and honor certificates, It is a continuous Innovative enterprise.The company equipped with a machining workshop, a precision constant temperature and dust-free assembly room, advanced testing technology and testing equipment, providing a complete set of solution and services for automobile manufacturing, aviation, aerospace, construction machinery, high-speed rail, elevators, new energy motor housings and other machinery manufacturing industries.

Our Services

Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price.
Assessed by third party, national patents and CE, ISO for all equipment.

---
