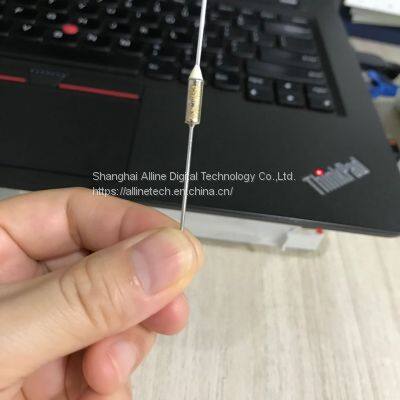

Thermal fuse G4A00240C 250V 10A TF240℃-Therm-O-Disc G4-series

Product Details

Product Description

Product Description
MICROTEMP thermal links from Therm-O-Discrepresent the global standard in thermal links. MICROTEMP thermal linksoffer an accurate, reliable solution to the need for upper limit temperature protection against overheating by interrupting an electrical circuit when operating temperatures exceed the rated temperature of the thermal link. The G4-series is rated for continuous operating currents up to 10 amps at 250 VAC (15 amps @ 120VAC, 5 amps @ 24VDC). The global agency recognition of the G4-series enables use in a wide range of applications including major and portable appliances as well as personal care products.
UL/CSA
120V/15A
250V/10A
24VDC/5A
VDE
120V/15A
250V/10A
24VDC/5A
CCC
250V/10A
G4A00240C specifications：
Rated Functioning Temperature（Tf) : 240℃
Holding Temperature(Th): 200℃
Maximum Overshoot Temperature(Tm): 450℃
Other models of Therm-O-Disc thermal fuses G4-series
G4A01 TF072C、G4A00 TF072C、E4A01 TF072C、E4A00 TF072C、E4A51 TF072C、E4A50 TF072C、G4A51 TF072C、G4A50 TF072C；
G4A01 TF073C、G4A00 TF073C、E4A01 TF073C、E4A00 TF073C、E4A51 TF073C、E4A50 TF073C、G4A51 TF073C、G4A50 TF073C；
G4A01 TF077C、G4A00 TF077C、E4A01 TF077C、E4A00 TF077C、E4A51 TF077C、E4A50 TF077C、G4A51 TF077C、G4A50 TF077C；
G4A01 TF084C、G4A00 TF084C、E4A01 TF084C、E4A00 TF084C、E4A51 TF084C、E4A50 TF084C、G4A51 TF084C、G4A50 TF084C；
G4A01 TF091C、G4A00 TF091C、E4A01 TF091C、E4A00 TF091C、E4A51 TF091C、E4A50 TF091C、G4A51 TF091C、G4A50 TF091C；
G4A01 TF093C、G4A00 TF093C、E4A01 TF093C、E4A00 TF093C、E4A51 TF093C、E4A50 TF093C、G4A51 TF093C、G4A50 TF093C；
G4A01 TF098C、G4A00 TF098C、E4A01 TF098C、E4A00 TF098C、E4A51 TF098C、E4A50 TF098C、G4A51 TF098C、G4A50 TF098C；
G4A01 TF104C、G4A00 TF104C、E4A01 TF104C、E4A00 TF104C、E4A51 TF104C、E4A50 TF104C、G4A51 TF104C、G4A50 TF104C；
G4A01 TF110C、G4A00 TF110C、E4A01 TF110C、E4A00 TF110C、E4A51 TF110C、E4A50 TF110C、G4A51 TF110C、G4A50 TF110C；
G4A01 TF117C、G4A00 TF117C、E4A01 TF117C、E4A00 TF117C、E4A51 TF117C、E4A50 TF117C、G4A51 TF117C、G4A50 TF117C；
G4A01 TF121C、G4A00 TF121C、E4A01 TF121C、E4A00 TF121C、E4A51 TF121C、E4A50 TF121C、G4A51 TF121C、G4A50 TF121C；
G4A01 TF128C、G4A00 TF128C、E4A01 TF128C、E4A00 TF128C、E4A51 TF128C、E4A50 TF128C、G4A51 TF128C、G4A50 TF128C；
G4A01 TF134C、G4A00 TF134C、E4A01 TF134C、E4A00 TF134C、E4A51 TF134C、E4A50 TF134C、G4A51 TF134C、G4A50 TF134C；
G4A01 TF141C、G4A00 TF141C、E4A01 TF141C、E4A00 TF141C、E4A51 TF141C、E4A50 TF141C、G4A51 TF141C、G4A50 TF141C；
G4A01 TF144C、G4A00 TF144C、E4A01 TF144C、E4A00 TF144C、E4A51 TF144C、E4A50 TF144C、G4A51 TF144C、G4A50 TF144C；
G4A01 TF152C、G4A00 TF152C、E4A01 TF152C、E4A00 TF152C、E4A51 TF152C、E4A50 TF152C、G4A51 TF152C、G4A50 TF152C；
G4A01 TF158C、G4A00 TF158C、E4A01 TF158C、E4A00 TF158C、E4A51 TF158C、E4A50 TF158C、G4A51 TF158C、G4A50 TF158C；
G4A01 TF167C、G4A00 TF167C、E4A01 TF167C、E4A00 TF167C、E4A51 TF167C、E4A50 TF167C、G4A51 TF167C、G4A50 TF167C；
G4A01 TF172C、G4A00 TF172C、E4A01 TF172C、E4A00 TF172C、E4A51 TF172C、E4A50 TF172C、G4A51 TF172C、G4A50 TF172C；
G4A01 TF184C、G4A00 TF184C、E4A01 TF184C、E4A00 TF184C、E4A51 TF184C、E4A50 TF184C、G4A51 TF184C、G4A50 TF184C；
G4A01 TF190C、G4A00 TF190C、E4A01 TF190C、E4A00 TF190C、E4A51 TF190C、E4A50 TF190C、G4A51 TF190C、G4A50 TF190C；
G4A01 TF192C、G4A00 TF192C、E4A01 TF192C、E4A00 TF192C、E4A51 TF192C、E4A50 TF192C、G4A51 TF192C、G4A50 TF192C；
G4A01 TF205C、G4A00 TF205C、E4A01 TF205C、E4A00 TF205C、E4A51 TF205C、E4A50 TF205C、G4A51 TF205C、G4A50 TF205C；
G4A01 TF216C、G4A00 TF216C、E4A01 TF216C、E4A00 TF216C、E4A51 TF216C、E4A50 TF216C、G4A51 TF216C、G4A50 TF216C；
G4A01 TF229C、G4A00 TF229C、E4A01 TF229C、E4A00 TF229C、E4A51 TF229C、E4A50 TF229C、G4A51 TF229C、G4A50 TF229C；
G4A01 TF240C、G4A00 TF240C、E4A01 TF240C、E4A00 TF240C、E4A51 TF240C、E4A50 TF240C、G4A51 TF240C、G4A50 TF240C；
G4A01 TF257C、G4A00 TF257C、E4A01 TF257C、E4A00 TF257C、E4A51 TF257C、E4A50 TF257C、G4A51 TF257C、G4A50 TF257C

---
