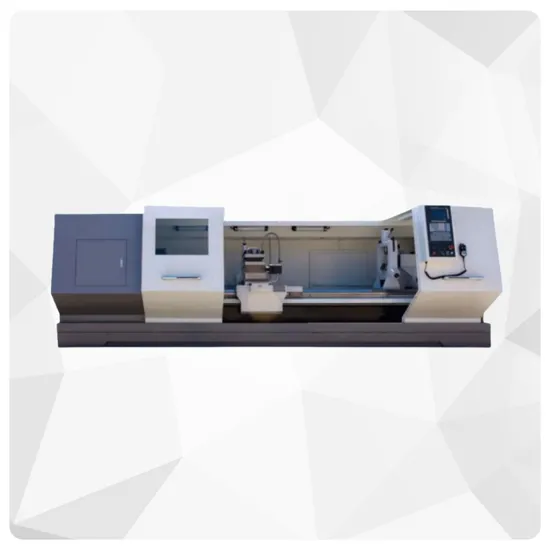

Heavy Duty for Industrial CNC Lathe Long Shaft Flat Bed CNC Lathe Machine

Product Description

Specification Parameter

Item	Unit	CK6163B	CK6180B	CK61100B	CK61125B
CNC System		GSK/SIEMENS /FANUC	GSK/SIEMENS /FANUC	GSK/SIEMENS /FANUC	GSK/SIEMENS /FANUC
Max. Workpiece length	mm	1000/1500/2000 /3000	1500/2000/3000 /5000/6000	1500/2000/3000 /5000	1500/2000/3000 /5000
Max. Turning length	mm	850/1350/1850 /2850	1350/1850/2850 /4850/5850	1350/1850/2850/4850	1350/1850/2850 /4850
Max. Swing over bed diameter	mm	630	800	1000	1250
Max. Swing over slide diameter	mm	350	480	620	870
Distance between spindle center to guide	mm	315	400	500	625
Distance between spindle center to ground	mm	1145	1130	1150	1275
Bed guide width	mm	550	600	755	755
Spindle through hole diameter	mm	104	104	130	130
Spindle nose		C11/A211	C11/A211	A2-15	A2-15
Spindle speed range	r/min	30~90;70~200;130~380 ;350~1000	30~90;70~200 ;130~380;350~1000	10~32;30~60;50~120 ;110~300	10~32;30~60 ;50~120;110~300
Spindle speed step		4gears,stepless	4gears,stepless	Manual 4gears ,stepless	Manual 4gears ,stepless
Gear shift		Manual/Auto	Manual/Auto	Manual	Manual
Xaxis feed min. Setting unit	mm	0.001	0.001	0.001	0.001
Zaxis feed min. Setting unit	mm	0.001	0.001	0.001	0.001

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
