Portable Mobile Milking Machine for Cow and Goat Piston Advanced

Product Description

Piston Advanced Mobile Milking Machine
According to the need number of barrels,Vacuum Pump Advanced Mobile Milking Machine can be divided into the Single-barrel Type and Double-barrels Type. There are the vacuum pump, electric motor, pulsator, milk tube, milking cup group and leglen be installed on one machine. It can work flexibly, without space constraints, be convenient and flexible. It is suitable for all kinds of dairy farms and dairy raising by farmer households(It is suitable for all kinds of nanny goat farms and nanny goat raised by farmers' families.)
Based on the original model and according to the practical needs from the customers, our company developed this product after the research and design by experts, its features are unique design, easy operation, easy maintenance, vacuum stability, low noise, stability pulsating frequency, small vacuum fluctuations, and soft milking, Alternate milking front and back can massage and protect the udder, thus achieving the ideal effect of increasing production. Only one milker is needed to operate and maintain the machine.
According to the different motive power, the mobile milking machine is divided into vacuum pump type And piston type. And according to the size of the milking cup, it is suitable for different animals, such as cows and goats etc.

Item Model	Type YDH-1	Type YDH-11
The Number of Stainless Steel Milk Bucket	One ( capacity of 25kg)	Two (each of capacity of 25kg)
The Number of Milking Cup Group	one set	two sets
Work efficiency	10-12 cows per hour	20-24 cows per hour
Operating Vacuum Degree	0.04-0.05 MPa (adjustable)	0.04-0.05 MPa (adjustable)
Pulsation Times	64 times per minute	64 times per minute
Power Fitted	0.55 KW	0.55KW
Voltage	110v, 220V, 240v or 380V	110v, 220V, 240v or 380V
Motor Speed	1440 rpm per minute	1440 rpm per minute
Employees Needed When Milking	one	one

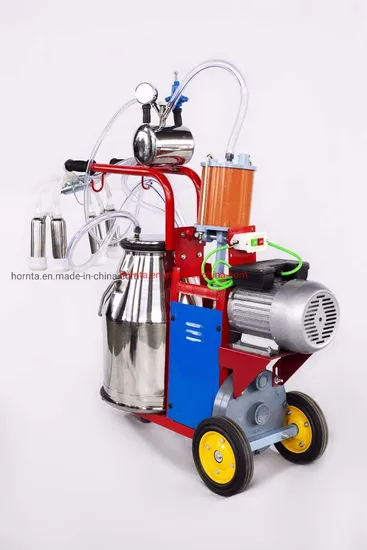

Picture of Piston Advanced Mobile Milking Machine:
