Gq105 Tube Centrifuge Tube Separator Centrifuge Tube Solid-Liquid Separator

Product Description

Solid-Liquid High Speed Tubular Bowl Centrifuge

The GF type is mainly used for various difficult-to-separate suspensions in the separation industry, and is especially suitable for liquid-liquid separation with small specific gravity differences and liquid-liquid-solid three-phase separation with a small amount of impurities. 1.The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences. 1. The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted via the control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.

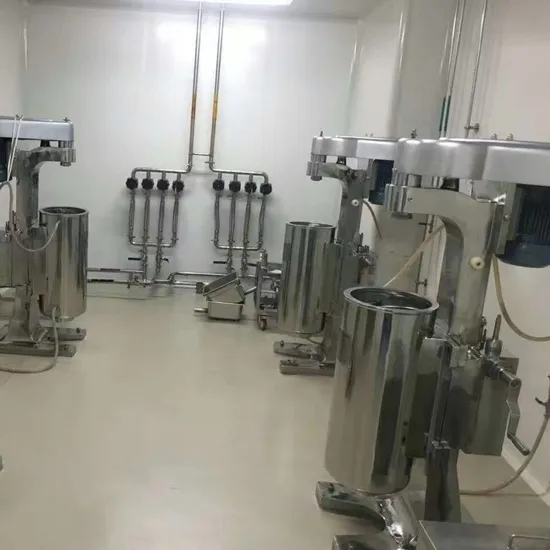

High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. High Speed Tubular Centrifuge working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
It is used to separate various emulsions, especially suitable for liquid-liquid separation with little difference in weight and liquid-liquid-solid separation with small amount of impurities. For example, transformer oil, turbine oil, lubricating oil, fuel oil, dyes, grease, saponification. Various micro-powder materials, Purification of Span-80 liquid, various oral liquids, various liquids, separation of "Nine-two"; separation of plasma bio-drugs and extraction of plasma from animal blood; edible oil, Tsai Soap, tea polyphenols, refining of soybean concentrated phospholipids, oil-water separation and sewage treatment.
Specification:

Model	GQ-45	GQ-75	GQ-105	GQ-125	GQ-150
Internal diameter(mm)	45	75	105	125	145
Effective height(mm)	255	430	730	735	700
Speed(r/min)	0-28000	20000	16300	15300	14300
Capacity(kg)	50-100	100-500	500-1200	1000-2000	1500-3000
Power(kw)	0.6	1.5	2.2	3	3
Size(mm)	580*620*730	500*400*1200	550*500*1650	600*500*1650	600*510*1650
Weight(kg)	120	300	550	600	650
