Product Description
Product Description

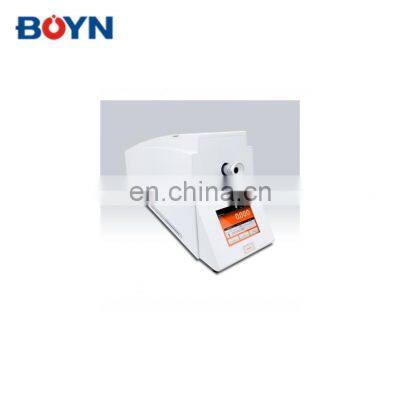

multiparameter semiautomatic polarimeter with LED light
POL-200
Characteristics:
Multiparameter semiautomatic polarimeter contains 4 measurement modes (Optical rotation, specific rotation, concentration and International Sugar Scale). Accuracy: 0.02 degrees.
Features:
1. High performance semiautomatic polarimeter is equipped with a 5.6 inches touch screen.
2. Selectable four measurement modes, including the optical rotation, specific rotation,concentration and International Sugar Scale.
3. LED light source effectively extends the working time.
4. Built-in temperature sensor automatically senses temperature of the sample chamber.
5. Auto-zero feature supports instrument returns to zero point by pressing the Return button.
6. Selectable tube lengths (100/200mm) or manually enter the desired value.
7. Zero correction allows adjusting the optical visual field to eliminate the zero error.
8. Automatic Temperature Compensation ensures accurate readings.
9. 1 to 3 point calibration that corrects the potential mechanical error.
10. Automatic message display helps user quickly begin using the instrument.
11. Expanded memory stores and recalls up to 100 readings.
12. Built-in real-time clock stamps stored data to meet GLP standard.
13. Stored data can be transferred into computer by USB communication interface.
14. On-screen operating manual detailedly shows the polarimeter uses.
15. Reset feature automatically resumes all parameters back to factory default settings.
Technical data:
Model
| POL-200
|
Measurement Modes
| Optical Rotation, Specific Rotation, Concentration ,°Z (ISS)
|
Measuring Range
| ±90°, ±130°Z
|
Accuracy
| ±0.02°, ±0.05°Z
|
Resolution
| 0.005°
|
Wavelength
| 589nm
|
Light Source
| LED, Interference filter
|
Test Tube
| 50/100/200mm
|
Temperature Range
| 0~100°C
|
Temperature Accuracy
| ±0.5°C
|
Memory
| Stores up to 100 data sets
|
Output
| USB Communication Interface
|
Language
| English
|
Display
| 5.6 inch TFT touch screen
|
Power Requirements
| AC 220V/50Hz
|
Dimensions
| 550(L)×300(W)×220(H)mm
|
Weight
| 7.5kg
|
