Ucr-T2000A Conveyorized Fully Automatic Turntable Pallet Wrapper Stretch Wrapping Machine

Product Description

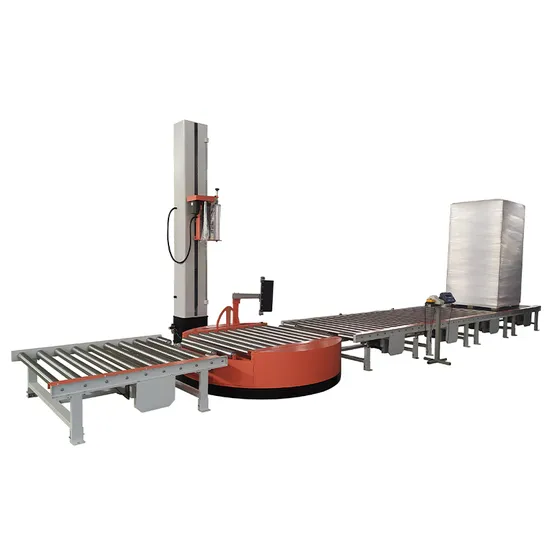

UCR-T2000A Conveyorized Fully Automatic Online Turntable Pallet Wrapper Stretch Wrapping MachineProduct DescriptionConveyorized Fully Automatic Online Turntable Pallet Wrapper Stretch Wrapping Machine is Designed to be Installed with Existing Product Flow for Wrapping a Continuous Stream of Pallets or Stand-alone Using that be Operated from the Forklift with a Remote.
UCR-T2000A Conveyorized Fully Automatic Online Turntable Pallet Wrapper Stretch Wrapping Machine Comes Standard with a Dia. 2000 mm x 12 RPM Variable Speed Conveyorized Roller Turntable, Auto Load Height Detector, Auto Film Clamper and Cutter as well as a Powered Roller Pre-Stretch Film Delivery System Up to 250 - 300%.
Suitable for Max. L 1200 mm x W 1200 mm Pallet with Max. 2000 mm Packging Height and Max. 2000 kg Load Capacity.Specifications

Model	UCR-T2000A
Packing Size Max.	W 1200 mm × L 1200 mm
Wrapping Height Max.	2000 mm
Turntable Diameter	2000 mm
Load Capacity	2000 kg
Efficiency	40 - 60 loads/h
Film Delivery System	Powered Roller Pre-Stretch System Up to 250 - 300%
Turntable Height	470 mm
Turntable Rotation Speed	0 - 12 rpm, variable
Roller Table Width (BF)	1300 mm
Conveyor Speed	8 m/min, Constant
Automatic Film Clamper and Cutter	Std.
Stretch Film	LLDPE Stretch Film in 500 mm width × 15 - 35 um thickness; Film Reel in 76 mm core diameter × Max. 250 mm OD
Air Supply	6 - 8 kg/cm2
Voltage	380 VAC 3 ph 50/60 Hz
Power	3.0 kw
Machine Size	L 2950 mm × W 2000 mm × H 2950 mm
Machine Weight	1000 kg

FeaturesPre-Stretch Up to 250 - 300% & Auto Load Height Detector
Film Carriage with Powered Rollers Pre-Stretch System (DC Motor) Pre-Stretch Film Up to 250 - 300%;
Electronic Film Tension (Wrap Force) Adjustment;
Photoelectric Sensor Automatically Senses Pallet Height in Auto Mode with Safety Trip Switch for Extra Security Assurance;Std. Max. 2000 mm Packing Height
Std. Packing Height 500 mm - 2000 mm; Increased Wrapping Height Customizable;Std. Dia. 2000 mm x 12 RPM Variable Speed Conveyorized Roller Turntable
Conveyorized Roller Turntable Diameter 2000 mm;
Between Frame Width (BF) 1300 mm;
Turntable Rotation Speed 0 - 12 RPM, Varibale;
Conveyor Speed 8 m/min, Constant;
Load Capacity 2000 kg;
Soft Start / Stop and Always Stopped at the Same Home Position;
Apply to Max. W 1200 mm x L 1200 mm Pallet;
Enlarged Pallet Size as well as Higher Load Capacity Customizable;Auto Film Clamper and Cutter
Automatically Cut the Film after Wrapping and Grip the Film for the Next Wrap;Opt. Heavy Duty Chain Driven Powered Roller Conveyor
Length: Std. 1750 mm (Infeed) + 1750 mm (Outlet);
Width: Std. 1300 mm Between Frame Width;
Height: Std. 500 mm Height;
Rollers: Std. Dia. 76 mm x 3.0 mm Wall Thickness Galvanized Steel Rollers with Dia. 20 mm Axle;
Load Capacity: Std. 2000 kg;
Speed: 8 m/min, Constant;
Conveyor Type (Chain Conveyor / Slat Chain Conveyor), Load Capacity and Enlarged Conveyor Size Customizable;User Friendly PLC + HMI Totally Controlled
Film Carriage Up/Down Times, Top and Bottom Reinforce Wraps with Individually Programmable;
Turntable Rotation Speed, Film Carriage Up/Down Speed and Film Tension Force Adjustment;Options* Infeed and Outlet Conveyor;
* Increased Wrapping Height;
* Enlarged Pallet Size;
* Power Supply Based on Country of Destination;
* Electrical Configurations;
* Top Press;
* Scale + Display / Scale + Display + Printer;
* Remote Control;
* Safety Fence, Interlock and Light Curtain;
