Coarse Grinding Machine Grinder

Product Description

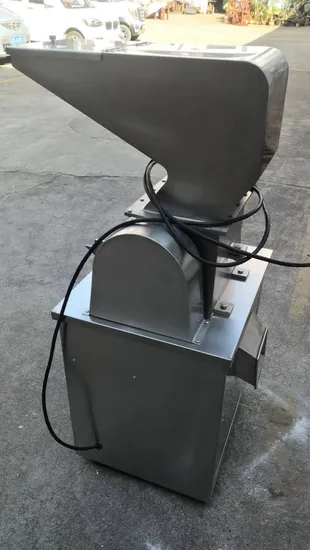

CSJ Rough Pulverizer
Introduction and Features
This machine is widely used in pharmacy, chemical, metallurgy, food, building industry, etc. It is able to crush the hard and firm materials such as rubber, plastic, copper wire and so on. It also can be used as former process supporting equipment for micro-particle pulverizing.
The machine has durable and compact structure, it is convenient to operate or maintain, and stable in running and high in output. The machine is of vertical tilting type, made up of base, motor, crushing chamber cover and feed hopper. The feed hopper and cover can be tilted for a certain degree. It is convenient for clearing the material stock from crushing chamber. Working principle is as follows, the materials enter into crushing chamber through feed hopper, cut and crushed by the spinning blade mounted on the motor shaft and the cutter fixed installed on the triangle base in crushing chamber, and flow through the sieve to the outlet port automatically under centrifugal force, the rushing process is finished.

Model	Inlet material diameter (mm)	Outlet material diameter (mm)	Output (Kg/hr)	Power (KW)	Shaft speed (rpm)	Overall dimension (mm)
CSJ-250	≤100	0.5~20	50~300	4	940	860*650*1020
CSJ-500	≤100	0.5~20	80~800	11	1000	1120*1060*1050

---
