Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000, EPA
Max. Digging Height
5790 mm
Max. Digging Depth
3950 mm
Max. Digging Reach
6320 mm
Transport Package
Comply with Export Packaging Requipment
Specification
5925*2005*2630mm
Production Capacity
50000pieces/Year
Product Description

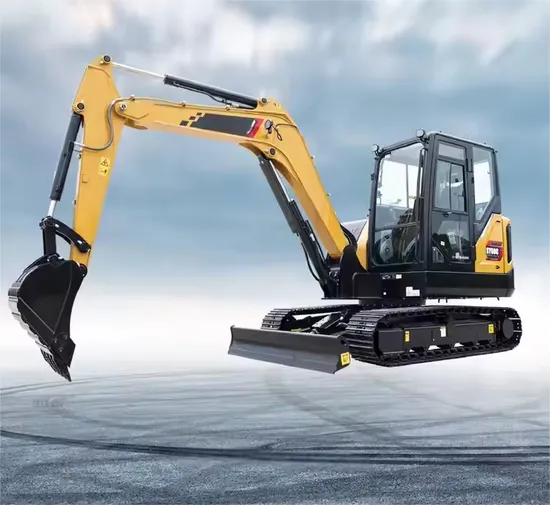

China 6 Ton Crawler Excavator 0.23cbm Bucket with Hammer SY60C
Product Description
Energy Saving & High Efficiency
The specialized and tailored load sensing system brings more excellent operability and higher efficient operation. Together with the fast slewing speed and large bucket capacity, more value for customers can be created.
Sensitive Operation
Accurate distribution of multi-actuator variable load flow brings more coordinated simultaneous movements.
Perfect startup and stop features of the pilot-operated joysticks offer better micro-positioning control performance.
Excellent Reliability & Durability
The large profile design of the integrally molded structural elements especially strengthens the key
parts, Which makes the machine obtain higher load-bearing capacity and enhance adaptability to adverse working conditions.
High Comfort & Intelligence
Spacious operation cab, superb all-round visibility, suspended seat, provide a high level of operator
comfort.
Product Parameters
Operating Weight
| kg
| 6050
|
Standard Capacity
| m³
| 0.23
|
Slewing Speed
| r/min
| 10.8
|
Traveling Speed(high/low)
| km/h
| 4.2/2.2
|
Max. Drawbar Pull
| kN
| 54.3
|
Digging Force of Bucket
| kN
| 45.5
|
Digging Force of Stick
| kN
| 28.5
|
Engine Manufacturer
| /
|
|
Engine Model
| /
| 4TNV94L-BVTY2C
|
Rated Power
| kW/rpm
| 36.2
|
Displacement
| L
| 3.054
|
Emission Standard
| /
| EU Stage IIIA
|
Length
| mm
| 5880
|
Width
| mm
| 1900
|
Height
| mm
| 2116
|
Tail Slewing Radius
| mm
| 1700
|
Track Gauge
| mm
| 1500
|
Length of Track On Ground
| mm
| 1950
|
Max. Digging Radius
| mm
| 6160
|
Max. Digging Reach
| mm
| 5980
|
Max. Digging Depth
| mm
| 3850
|
Max. Digging Height
| mm
| 5790
|
Max. Dumping Height
| mm
| 3980
|
Detailed Photos
>>
