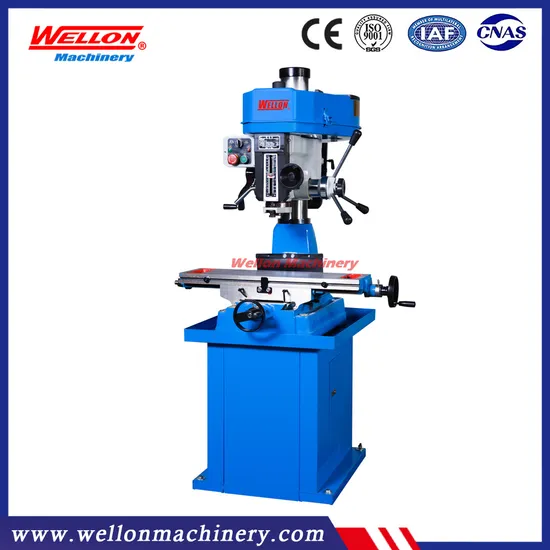

Mini Bench Drilling Milling Machine ZAY7020/ZAY7032/ZAY7045

Product Description

Product Description
Product Parameters

Performence Features:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Technical parameter

Model	ZAY7020	ZAY7032	ZAY7045
Drilling capacity	20mm	32mm	45mm
Face milling capacity	63mm	63mm	80mm
End milling capacity	20mm	20mm	32mm
Distance from spindle nose to table	435mm	450mm	450mm
Min.distance from spindle axis to column	181.5mm	203.5mm	203.5mm
Spindle travel	85mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8
Step of spindle speed	12	12	12
Range of spindle speed 50Hz	100-2200 r.p.m	80-2080 r.p.m	80-2080 r.p.m
60Hz	120-2640 r.p.m	100-2500 r.p.m	100-2500 r.p.m
Swivel angleof headstock (horizontally)	360	360	360
Table size	520/160mm	800/240mm	800/240mm
Y axis travel	140mm	175mm	175mm
X axis travel	290mm	500mm	500mm
Motor Power	0.55KW	0.75KW	1.5KW
Voltage/frequency
Net weight/gross weight	130kg/190kg	280kg/330kg	285kg/335kg
Packing size	620/750/1000mm	1020/820/1160mm	1020/820/1160mm
Loading amount	48pcs/20'container	28pcs/20'container	28pcs/20'container

Standard accessories:
Allen wrench
Draw bar
Wedge
Some tools
Optional accessories:
Drill chuck
Auto power feed
Machine Vice(125)
Milling cutter holder
Auto tapping electrical
Collets chuck
Work lamp
Coolant system
Stand base

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
