Magnetic Strip Cutting and Inserting Machine for Freezer Gasket/Magnetic Strip Inserting Machine

Product Details

Product Details

Product Description

Product Description

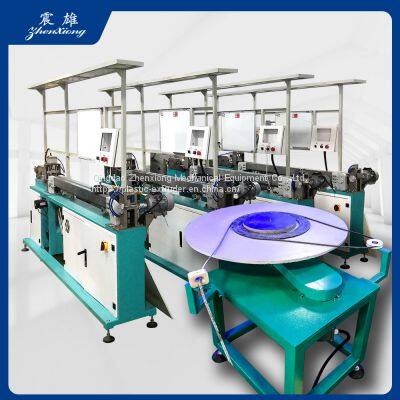

Refrigerator Door Seal Magnetic Strip Cutting and Inserting Machine
1, The magnet strip inserting machine optimizes foreign advanced conception.

2, It adopts serve control system.

3, Touch screen size parameter inputting. Then inserting the strip into the soft PVC gasket.

4, Power of this machine is supplied by serve motor and cylinder.

5, The magnetic strip transported from strip unwrapping machine is inserted into 45 degree gasket conveniently.

6, The inserting machine produces fridge door seal and gasket fast.
Main Technical Parameters
Electrical supply380V/50Hz/16A (Designed by the requirement of the client)
Max Power3.5KW
Magnetic strip spreading device dimension1200×1200×1200mm
Magnetic strip spreading device weight120Kg
Dimension4200×650×1450mm
Total weight540Kg
Working table size1300×1200×1100mm
Working table weight45Kg
Control panel dimension500×600×1100mm

Main components:
1,Magnetic strip spreading device
2,Magnetic strip loading device
3,Magnetic strip pressing device
4,Magnetic strip tightenin device
5,Magnetic strip inserting device
6,Magnetic strip cutting device
If you have any needs, please feel free to contact us and sincerely look forward to working with you.
