High Precision Hot Sale PU NBR Rubber Oil Seal Maker Solution CNC Turning Lathe Seal Making Machine with Software

US$80,000.00
1-4 Pieces
US$78,000.00
5+ Pieces

Basic Info.

Model NO.
CS800
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Seal Macking CNC Lathe Machine
Structure
Slant Bed CNC Lathe
Max. Turning Seal Diameter
800mm
CNC Controller
Siemens 828d/Fanuc
Color
OEM
Chuck
Manual Chuck/Hydraulic Chuck
Key Words
Seal Maker, CNC Turning Machine for Seal
Workpiece
Seal Raw Materials
Delivery Time
2 Months
Warranty Time
12 Months
Loading Port
Shanghai Port, China
Tools
Vdi20 Tool Holder and Inserts
Function
CNC Turning Lathe Machine for Seal Making
Raw Material
PU, NBR
Turret
Horizontal 8 Station Turret
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
3500.000kg

Product Description

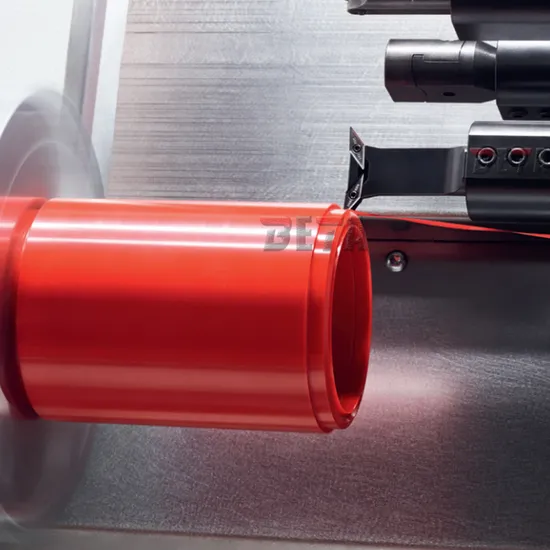

Seal Solution Hot Sale Seal Making CNC Turning Lathe Machine with Software
Specification CS800
Max. Turning diameter over bed 830 mm
Max. Seal Turning diameter 800 mm
Spindle A2-6
Spindle bore diameter 65 mm
Max. spindle speed 4200 r/min
Chuck size 8 inch chuck
X-axis rapid move speed 24 m/min
Z-axis rapid move speed 24 m/min
X-axis travel 410 mm
Z-axis travel 450 mm
X-axis motor (with brake) Siemens 2.29 kw / 11Nm
Z-axis motor Siemens 2.29 kw / 11Nm
X-axis guide SKF 35
Z-axis guide SKF 35
Turret type Horizontal 8 station VDI turret
X/Z axis ball leadscrew Taiwan HIWIN SKF
Leadscrew bearing Germany FAG
Spindle bearing NSK
Electrical components Schneider
Main motor power 11 kw
CNC Controller Siemens 828D
Motor power of suction machine 5.5 kw
Machine weight 3200 kg
Overall size of CNC lathe 2750*1780*1920 mm
Overall size of Suction machine 900*1100*2000 mm
Repeated positioning accuracy X-axis/Z-axis 0.004mm/0.004mm
