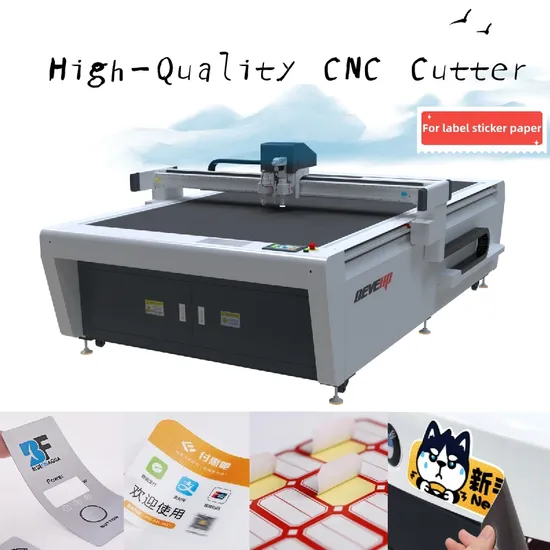

CNC Cardboard Vinyl Banner Self-Adhesive Cutter Paper Plotter Box Carton Cut PVC Honeycomb Board Sticker Digital Label Cutting Machine

Product Description

CNC Cardboard Vinyl Banner Self-Adhesive Cutter Paper Plotter Box Carton Cut PVC Honeycomb Board Sticker Digital Label Cutting Machine
Introductions:
High-quality industrial-grade flatbed digital cutting machine for cutting various materials, such as label, stickers, pvc, cardboard, packaging carton, corrugated box, honeycomb paper board, plastic boards, foams, fiber sheets, cardboards, carton, rubber sheets, paper, fabrics (Including upholstery fabrics), leather, acoustic panels, insulation foams, EVA EPE PE Foam, Composite materials e.g. glass fibre, carbon fibre, prepregs and many more. Manufactured to quality standards not to a price.
A versatile and easy-to-use cutting machine that comes with various cutting tools mechanisms to utilise oscillating blades, kiss cutting tool, or circular knives with high-precision motors, and high-tech parts to produce high-precision results.
Deveup CNC high precision digital cutting system can realize through cutting, kiss cutting, milling, punching, creasing and marking function with high speed and high precision. With stacker and collection system, it can complete the material feeding and collecting quickly. It is quite suitable for sample making, short run and mass production in sign, advertising printing and packaging industries.
Industrial-quality machine with high precision and reliability without high price tag!
Specifications:

Parameters/Model	DO1216 DO1625 DO1330 DO1830 DO2030
Working Size	1200*1600mm 1600*2500mm 1300*3000mm 1800*3000mm 2000*3000mm (can be customized)
Cutting thickness	≤45mm (Other thickness can be customized according to the material)
Cutting speed	≤1700mm/s(The actual speed depends on the material and cutting graphics)
Applicable materials	Oxford cloth, Nonwoven Fabric, Prepreg, Neoprene, Synthetic Leather, cowhide, fur, PVC, Foam,Acoustic panel, KT board, car stickers, rubber, sponge, carton, film, fiberglass, fabric, carbon fiber, and other materials
Cutting precision	± 0.1mm
Repeat accuracy	≤0.05mm
Min cutting circular diameter	≤1mm Diameter
Positioning way	Laser positioning also optional CCD camera positioning
Safety device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety
Material fixed way	Vacuum adsorption
Transport interface	Ethernet front-end ports/usb
Compatible software	AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization
Support File Format	AI, PLT, DXF
Operation Panel	Multilingual languages LCD touch panel
Transmission system	High precision linear guide, meshing transmission gear and rack structure, high performance servo drive motors + precision reducer
Power supply voltage	AC 220 v to 380 v ± 10%, 50 - 60hz
Pump power	7.5kw/9kw/11kw
Work environment	Temperature: - 10 ºC to 40 ºC, humidity: 20% ~ 80% RH

Machine Details: Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect processing data,feature-rich and user-friendly operation. A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high processing accuracy, truly multi-purpose machine. We use CNC gantry machining center for planing and milling machine bed. The machine bed has the characteristics of heavy weight, good load-bearing capacity and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in at least 10 years. The beam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gasketsImported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth running at high speed and less noise.Taiwan PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precisionSafety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator. The worktable is a high precision and strength 40mm thick aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material. Imported Holland 4mm felt with built-in fiber tensile layer to protect the vacuum table and blades while the machine is working. Cutting-resistant, soft, won't scratch the product, non-slip, prevent the material from shifting during the cutting process.
High power vacuum pump to fix material. The vacuum pump runs automatically when the machine is working. Use top quality Japan Panasonic or Taiwan Delta servo motors and drivers(X-axis double servo motor driving + precision reducer drive). Strong power, long life, and high precision.It has an automatic feeding conveyor for rolls cutting. After cutting the material on the table. The feeding table automatically rolls forward to pull the material behind the table. and keep cutting. No need to manually pull the material forward. The cutting process also does not need to be interrupted, and with automatic deskew function.
Tools introduction:
Cutting Samples:
More Applications:
Paclkages and Delivery:
FAQ:
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
Why Choose Us?
We provide customers with automated production equipment that replaces skilled workers and reduces labor costs.
We equip our machines with automated typesetting software that provides customers with an optimal layout plan, maximizes material utilization and avoids wasted material.
Our equipment is easy to operate. The digitalized processing transforms "old-fashioned" repetitive work (typesetting, changing size, etc.) into one operation, making it more "user-friendly," reducing employee turnover and its negative effects on production.Digital production enables a seamless cooperation between machine and man that has never before been possible.
The efficiency of our machines is unparalleled and the supply cycle is shortened, which makes our customers become the leaders once again in a highly competitive industry.

---
